Barrel Nuts

Custom Nuts Manufacturer

Heatfastener

Barrel Nuts

Supplier

Heatfastener. We mainly produce all kinds of barrel nuts, custom screws, bolts, nuts, rivets, lathing parts, and other fasteners products, and the material of these products can be carbon steel, stainless steel, alloy steel, copper, brass, aluminum. We can make products complied with JIS, ANSI, DIN, ISO standards or according to the customized requirement strictly. We have been specialized in making fasteners products since 2001, which makes us gather abundant experience in technique, and we also fetch in advanced management method from some other Taiwan companies. We are committed to designing and researching the products independently, and we also establish an independent quality control department, research, and development department

Our products are mainly used in the automotive industry, high-speed railway industry, aviation industry, medical equipment industry, etc, we have designed and manufactured key components for world-famous enterprises, we are committed to providing our customers with high-quality products, high-level services, and continuous improvement

Heatfastener offers fully customized custom bolts and screws according to your needs. We can bring your fastener design to reality, and everything according to your requirements.

.

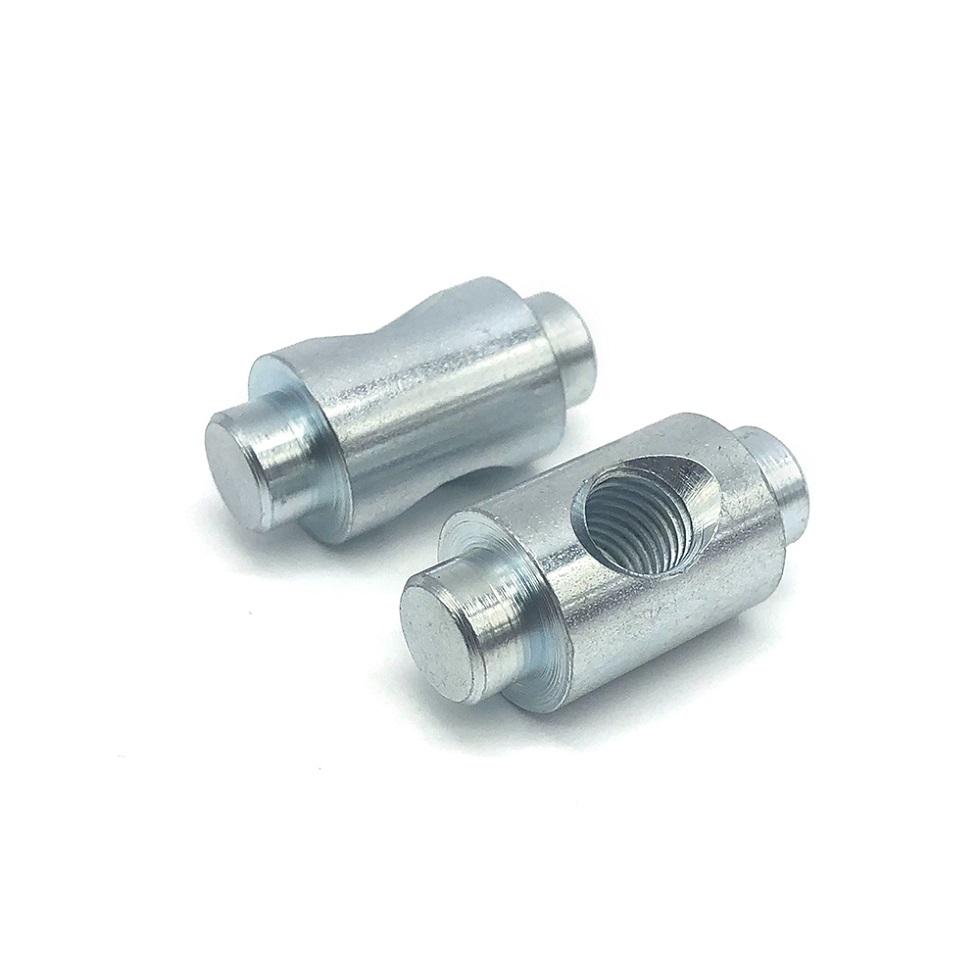

barrel nuts

Barrel Nuts Details

Barrel nuts (likewise referred to as steel cross dowel or dowel nut) is a specific nut, and also is typically utilized in aerospace as well as ready-to-assemble furniture applications. we can call furniture screws, nuts, bolts

Barrel nuts are additionally typical in flat-pack furnishings, where lengthy screws and also barrel nuts are made use of to hold together T joints in chipboard sheets.

It is made use of to screw slim sheet steel components to bigger, typically billet or built, components. The barrel nut is a rounded slug, or created sheet steel gets rid of strings vertical to the size of the nut. The nut beings in an opening inside the building as well as a basic screw are threaded right into the barrel nut from outside the sheet steel. They are chosen over a typical nut as well as screw, since they do not need a flange to be machined or created onto the obtaining component, therefore minimizing weight.
Furnishings go across dowel barrel nuts are round designed steel nuts (steel dowels) utilized with furnishings adapter screws to sign up with 2 items of timber. The within the threaded opening is uncommon because it travels through the sides of the dowel. To mount, the items of timber to be signed up with are straightened, after that, a screw opening is pierced via one item of timber and also right into the various other. A dowel opening is pierced side to side throughout the screw opening and also the cross dowel is placed right into it. Completion of the cross dowel is slotted to ensure that a screwdriver can be placed to turn the dowel to make sure that its threaded shaft straightens with the screw opening. The furnishings port screw is placed right into the screw opening as well as screwed right into the cross dowel till the timber items are held firmly with each other.

Barrel nuts and barrel bolts come in a variety of diameters and lengths. We carry them in coarse and fine thread. Listed below are the diameters we carry:

Materials:

  • Stainless steel – SS302, SS304, SS316, (good tenacity),Stainless steel A2 A4
  • Steel – C45(K1045), C46(K1046),C20
  • Brass – C36000 ( C26800), C37700 ( HPb59), C38500( HPb58),C27200CuZn37), C28000(CuZn40)
  • Bronze–C51000, C52100, C54400, etc
  • Aluminum – Al6061, Al6063 etc
  • Carbon steel – C1006,C1010,C1018,C1022,C1035K,C1045
  • Alloy steel – SCM435,C10B21,C10B339
  • Other material– Titanium, UNS C11000 Copper,silicon

Others:

  • Grade: Grade 4.8,Grade 6.8,Grade 8.8,Grade10.9,Grade12.9 etc
  • Standard:GB,DIN,ISO, ANSI/ASTM,BS,BSW,JIS, Metric, Inch
  • Finish:Plain, H.D.G, Black oxide, Chrome, Teflon,dacromet,Anodized,With nylok
  • Certificates: ISO9001:2015, ISO14001:2015,IATF16949, ROHS
  • Non standards:OEM is available,according to customer requirments

Head type&Drive Type

  • Head Type:Flat, Oval, Binding, Pan, Round, Truss, Button, PF,Cheese,Fillister, Pan Washer, Cylinder,Hexagon, Indented Hexagon,Washer
  • Drive Type:Phillips, Slotted, Phiilips/Slotted, 6 Lobe, Pin 6 Lobe, Pozidrive, Square, Triangle,Y type. Tri-wing, S-type, H type, Hexagon, 5 Point,8 point, Spline, Spanner, Clutch, Hex pn,torx pin
  • Thread Type:Machine screws,bolts, self tapping etc

Application

A barrel nut is a female fastener used to bolt individual pieces of an assembly together without having an exposed nut on one of the work-piece faces. The barrel nut consists of a short, straight length of round bar with a perpendicular, threaded hole through its center. To install the nut, a hole is drilled, typically from a hidden surface, on a workpiece into which the nut fits. Another hole is then drilled into the workpiece to correspond with the position of the nuts’ threaded opening. This allows a second workpiece to be bolted to the first without any nut being visible on its face, a useful feature in aesthetically-sensitive applications such as furniture making.

Also, our custom fastener, bolts, screws are widely used in the below industries

  • Electronics
  • Petrochemicals
  • Consumer products
  • Transportation
  • Agriculture
  • Heavy machinery
  • Construction
  • Automotive
  • Medical
  • Military
  • Aerospace
  • Oil and gas

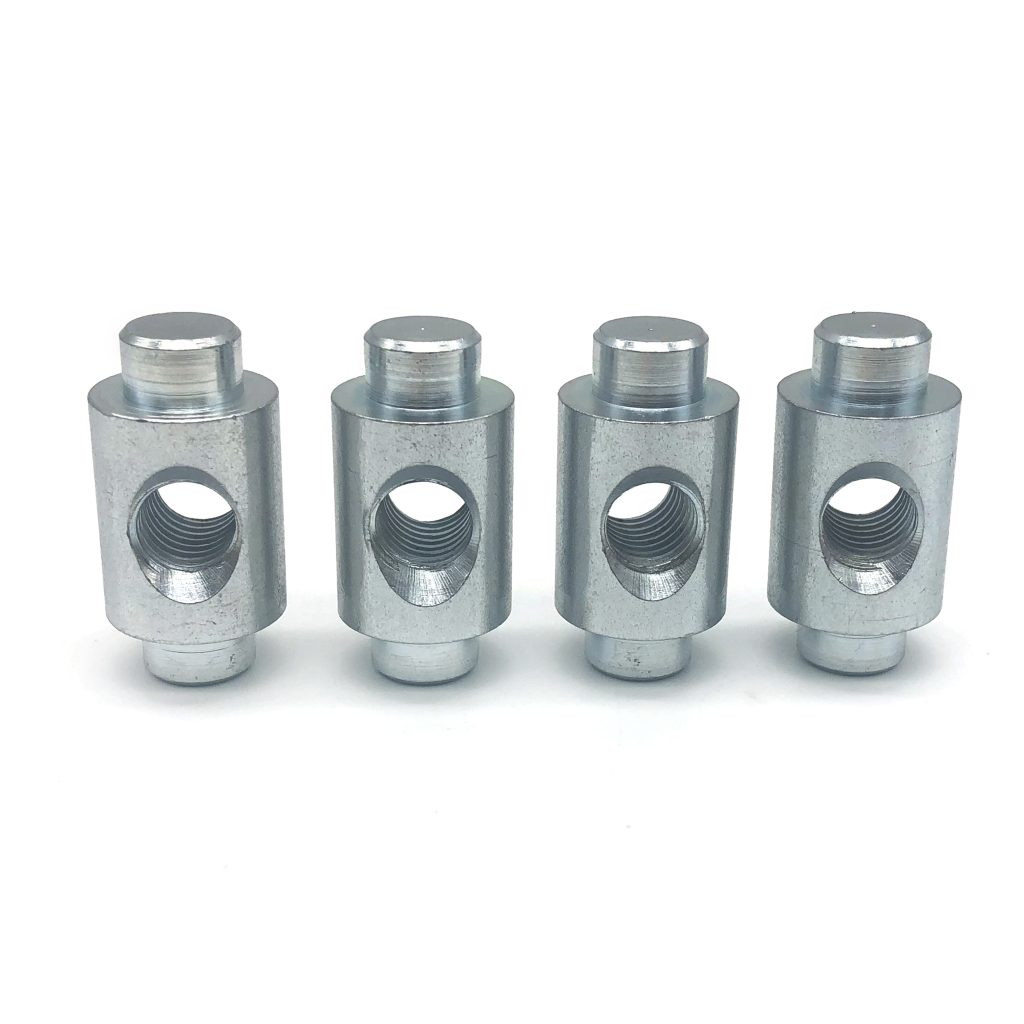

barrel nuts application

barrel nut has a threaded hole with a drilled-out and threaded center, which the bolt fits into.

  • Clutch Head Security Barrel Nuts
  • Pin Hex Countersunk Security Barrel Nuts.
  • Socket Countersunk Barrel Nuts
  • Slotted Raised Countersunk Barrel Nuts
  • Slotted Raised Head Barrel Nuts
  • Low Profile Socket Barrel Nuts.
  • Domed Low Profile Barrel Nuts (No Drive)
  • Pozidrive Barrel Nuts

Heatfastener carries all kinds of barrel nuts and bolts, from Micro M1 to Large bolts. and specially custom barrel nuts

DiameterPitchDepth of nutAcross Flats
M50.8mm15mm8mm
M61.0mm18mm10mm
M81.25mm24mm13mm
M101.5mm30mm17mm
M121.75mm36mm19mm
M142mm72mm22mm
M162mm48mm24mm
M182.5mm54mm27mm
M202.5mm60mm30mm
M222.5mm66mm32mm
M243.0mm72mm36mm
M273.0mm76mm41mm
M303.5mm90mm46mm
M364mm108mm55mm

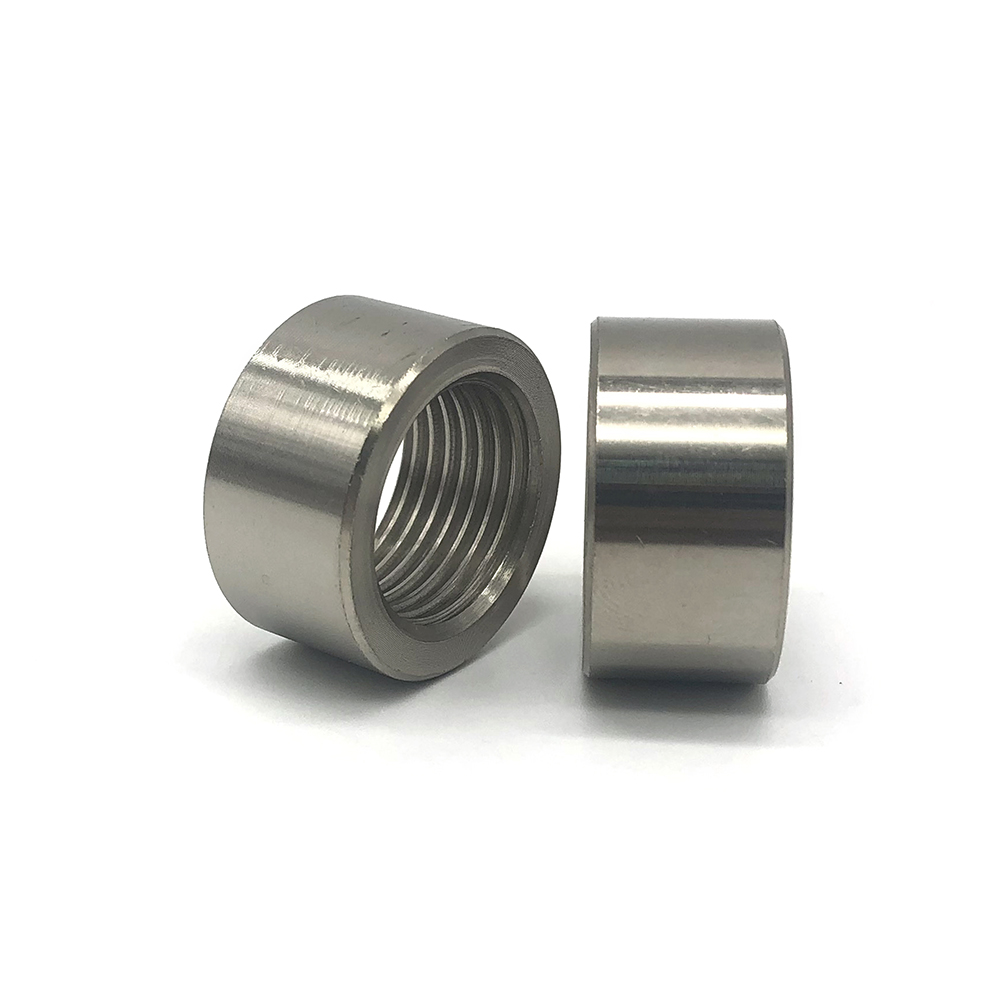

barrel nuts

Need Custom Barrel Nuts for Your Industry?

As a 20-year industry experience manufacturer with a factory equipped with precision machines, we can provide, from consultation to production, a one-stop solution for you.

About Us

Shenzhen Heat Hardware Co., Ltd is a leading custom screw manufacturer in China founded in 2000 years. We are specializing in custom screws, security screws, Sems screws, Chicago Screws, Weld Screws, Long screws, Micro Screws, Thumb Screws, Set Screws, Custom bolts, carriage bolts, nuts, and other custom Fasteners. With more than 20years of industry experience. We have serviced over 20000customers including the aerospace industry, automotive industry, electronics, mechanical and electrical products, robots, the Medical industry, communications industry, Outdoor sports products, smart appliances, etc. we can provide one-stop fastener customized service for you no matter what kind of custom fastener you need.

Frequently Asked Questions

Dowel nuts, also known as barrel nuts, are cylindrical metal nuts used with furniture connector bolts in order to join two pieces of wood together in ready-to-assemble furniture applications. The threaded portion of the dowel nut is unique because it passes through the sides of the nut.

Ys they will but, you could have one made for a barrel with a diameter of 0.65 then try to put the same handguard on a 1.00-inch barrel and it may not fit. Bull barrels are USUALLY 1 inch. covers a lot of territories.

Place the end of a measuring tape on one of the flat sides of the nut’s outer perimeter. Stretch the tape measure across the nut’s diameter to the flat-side directly across from the one you pulling from. If the nut is metric, count the number of lines on the tape measure to find the measurement.

About this item. M6 barrel nut size: total length is 12 mm/ 0.47inch, the outer diameter is 10 mm/ 0.4 inch, the threaded hole diameter is 5.35 mm/ 0.21 inch, proper size will meet your needs, not suitable for imperial 1/ 4 – 20 bolts.
