What is Self Drilling Screw?
Self-drilling screws, also known as Tek screws, are specifically designed to eliminate the need for a separate drilling operation before screw installation. They feature a unique design, including a built-in drill bit at the tip, which enables them to create their own pilot hole as they are driven into the material. This feature sets self-drilling screws apart from other types of screws and provides significant time-saving benefits, particularly in high-production settings.
Self-drilling screws are most commonly used in metal-to-metal applications, where they can effectively join thick metal panels or metal frames. They can also be utilized in wood-to-metal connections, such as fastening a wooden structure to a metal frame. These screws are available in various materials, finishes, head types, and sizes to accommodate a wide range of projects and preferences.
When using self-drilling screws, it is essential to apply steady pressure during installation to ensure proper hole formation and thread engagement. The built-in drill bit at the tip not only creates the pilot hole but also helps to remove the material as the screw is driven in, ensuring a secure connection.
What is Self Tapping Screw?
Self-tapping screws differ from self-drilling screws in that they do not have a built-in drill bit at the tip. Instead, they are designed with a sharp, tapered point that allows them to create their own threads within a pre-drilled hole. As a result, self-tapping screws require an initial drilling operation to create a pilot hole before they can be installed.
These screws are suitable for a wide range of applications, including woodworking, plastic, and thin sheet metal projects. There are two main types of self-tapping screws: thread-forming and thread-cutting. Thread-forming self-tapping screws are designed for use with softer materials, such as plastic, while thread-cutting screws are ideal for harder materials, like metal and wood.
Self-tapping screws create a strong connection in materials that may be too thin or brittle for self-drilling screws. They are available in various materials, finishes, head types, and sizes to accommodate different project requirements and preferences.
When using self-tapping screws, it is crucial to use the appropriate drill bit size when pre-drilling holes. This ensures a properly sized hole for the screw, leading to a secure connection and reducing the risk of damaging the screw or the material during installation. Applying cutting lubricant when working with metals can also reduce friction, extend the life of the screw, and prevent damage to the material or the tool.
Self Drilling vs Self Tapping Screws: The Differences
Material Compatibility: Self-drilling screws are best for metal-to-metal and wood-to-metal applications, while self-tapping screws are more versatile and can be used in wood, plastic, and thin sheet metal. It’s crucial to choose the appropriate screw based on the materials you’re working with to ensure a strong connection.
Installation Process: When using self-drilling screws, you won’t need to pre-drill a hole, as the screw will create its pilot hole. However, with self-tapping screws, you’ll need to drill a pilot hole first, and then the screw will create its threads as it’s driven into the material.
Screw Design: The primary difference in design between the two screws is the presence of a built-in drill bit on self-drilling screws. This feature allows them to create their own pilot hole. Self-tapping screws, on the other hand, have a sharp, tapered point that enables them to create threads in pre-drilled holes.
Strength and Durability: Both types of screws offer strong and durable connections, but the choice between them depends on the material and application. Self-drilling screws are ideal for heavy-duty applications involving thicker materials, while self-tapping screws are better for lighter applications with thinner or more fragile materials.
Cost: Generally, self-drilling screws are more expensive than self-tapping screws due to the built-in drill bit of the same material and dimension. However, the time and effort saved by not having to pre-drill a hole can make up for the cost difference, especially in high-production settings.
Self-drilling screws and self-tapping screws, while sharing some similarities, have distinct features that make them suitable for specific applications. Self-drilling screws have a built-in drill bit at the tip, allowing them to create their own pilot hole and eliminating the need for a separate drilling operation. They are ideal for metal-to-metal and wood-to-metal applications. Self-tapping screws, on the other hand, require a pre-drilled hole and create their own threads as they are driven into the material. They are versatile and suitable for woodworking, plastic, and thin sheet metal applications. Understanding the unique characteristics of each screw type will help you choose the right fastener for your project and ensure a strong, secure connection.
How to Choose The right self-tapping and self-drilling screws?
Both self-drilling and self-tapping screws come in various head types, including:
- Flat head: These screws have a countersunk head, making them suitable for applications where a flush finish is desired.
- Pan head: With a slightly rounded head, these screws are ideal for applications that require a more decorative appearance.
- Truss head: These screws have a low, wide profile, providing a large bearing surface that’s suitable for attaching thin materials.
- Hex head: Featuring a hexagonal shape, these screws are typically used for heavy-duty applications and can be tightened with a wrench or socket.
Choose a screw with the appropriate head type based on your project’s requirements and aesthetic preferences.
Thread length is another factor to consider when choosing screws. Self-drilling screws often have a longer thread length, which provides increased holding power in thicker materials. Self-tapping screws, on the other hand, come in various thread lengths suitable for different material thicknesses. Select a screw with the appropriate thread length to ensure a strong and secure connection.
If you’re working with materials that may be exposed to moisture, chemicals, or other corrosive elements, it’s essential to choose screws with corrosion-resistant coatings or materials. Both self-drilling and self-tapping screws are available in stainless steel, zinc-coated, and other corrosion-resistant options. Make sure to select the appropriate screw material and coating for your project’s environmental conditions.
The load-bearing capacity of a screw is crucial for structural applications. Generally, self-drilling screws offer a higher load-bearing capacity due to their thicker shank and the longer thread length. However, self-tapping screws can also provide adequate strength for lighter applications. Always consult the manufacturer’s specifications to ensure the chosen screw can handle your project’s load requirements.
Expert Tips for Using Self-Drilling and Self-Tapping Screws
- Use the appropriate drill bit size when pre-drilling holes for self-tapping screws. An incorrectly sized hole can lead to weak connections or damage the screw during installation.
- Apply steady pressure when driving self-drilling screws into materials to ensure proper hole formation and thread engagement.
- Avoid overtightening screws, as this can strip the threads or damage the material.
- When working with metals, apply a cutting lubricant to self-tapping screws to reduce friction and extend the life of the screw and the tool.
- Inspect the connections periodically, especially in high-stress or outdoor applications, to ensure the screws remain secure and corrosion-free.
Types of Self-Tapping Screws and Their Applications
Thread-Forming Self-Tapping Screws
Thread-forming self-tapping screws, also known as Type AB or Type B screws, are designed for use with softer materials like plastic, wood, and thin sheet metal. These screws have a centrilobular or slightly triangular-shaped shaft, which helps them to displace the material as they are driven in, forming threads without cutting or removing material. This displacement method results in a tight, secure fit with minimal risk of material cracking or splitting.
Thread-forming screws are commonly used in applications like:
- Assembling plastic enclosures and components
- Fastening wood and particleboard in furniture manufacturing
- Securing thin metal sheets in HVAC ductwork and panels
Thread-Cutting Self-Tapping Screws
Thread-cutting self-tapping screws, also known as Type A, Type F, or Type 1 screws, are designed for use with harder materials like metal, wood, and some dense plastics. These screws feature a sharp, cutting edge on the tip and a tapered thread that cuts into the material, creating threads as they are driven in. Unlike thread-forming screws, thread-cutting screws remove material as they create threads, resulting in a clean and precise connection.
Thread-cutting screws are commonly used in applications such as:
- Joining metal components in automotive and machinery manufacturing
- Assembling metal frames and structures
- Fastening dense plastic components in electronics and appliances
Self-Tapping Sheet Metal Screws
Self-tapping sheet metal screws, also known as Type C or Type CA screws, are specifically designed for thin sheet metal applications. They have a sharp, tapered point and fine, closely spaced threads that allow them to create a secure connection in thin materials without causing deformation or distortion. These screws are available in various head types, including pan, flat, and hex, to accommodate different requirements and preferences.
Self-tapping sheet metal screws are commonly used in applications like:
- Attaching sheet metal panels in roofing and siding installations
- Fastening metal components in automotive bodywork and repair
- Assembling metal cabinets, enclosures, and brackets
Self-Tapping Concrete Screws
Self-tapping concrete screws, also known as masonry or Tapcon screws, are designed to create threads in pre-drilled holes within concrete, brick, and other masonry materials. These screws feature a high-low thread design and a hardened, carbide tip that allows them to cut into the hard surface, creating a secure connection without the need for anchors or other additional fasteners.
Self-tapping concrete screws are commonly used in applications such as:
- Securing handrails, brackets, and fixtures to concrete walls
- Fastening metal or wood framing to concrete slabs and foundations
- Installing electrical and plumbing components in masonry walls
Self-tapping screws are available in various types, each designed for specific materials and applications. The main types include thread-forming screws for softer materials, thread-cutting screws for harder materials, self-tapping sheet metal screws for thin sheet metal applications, and self-tapping concrete screws for masonry materials. By understanding the unique features and uses of each self-tapping screw type, you can choose the appropriate fastener for your project, ensuring a secure, long-lasting connection.
Types of Self-Drilling Screws and Their Applications

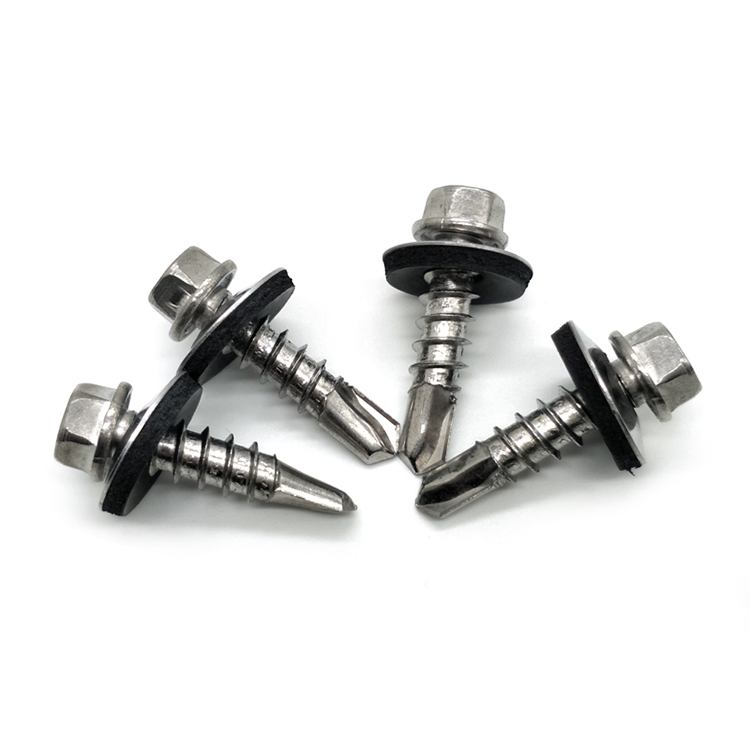

Hex Washer Head Self-Drilling Screws
Hex washer head self-drilling screws feature a hexagonal head with an integrated washer, which provides a large bearing surface and distributes the clamping force evenly. These screws are typically used for heavy-duty applications where high torque is required, such as securing metal panels, frames, and roofing materials. The hex head can be driven using a wrench, socket, or power tool, allowing for efficient and secure installation.

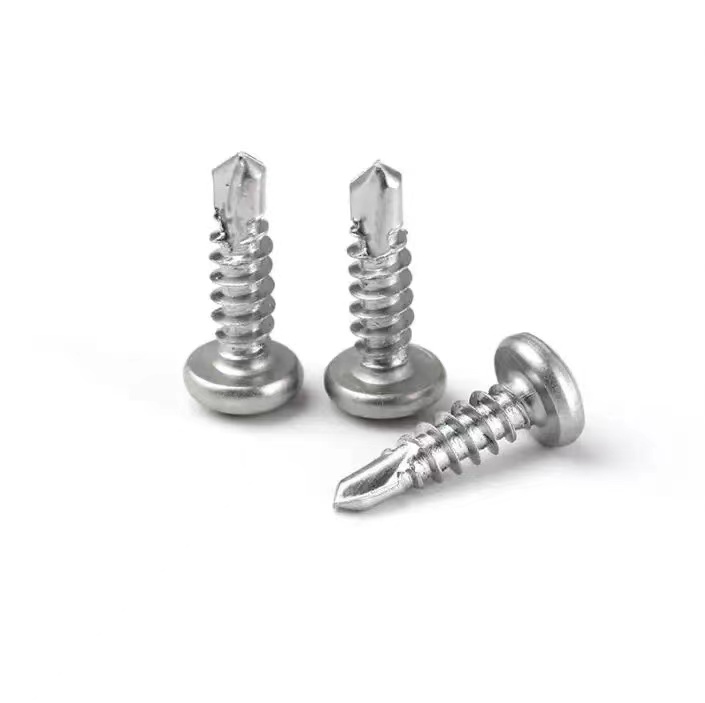

Pan Head Self-Drilling Screws
Pan head self-drilling screws have a slightly rounded head that sits above the surface of the material. These screws are ideal for applications where a more decorative appearance is desired, and they are commonly used in assembling metal components, attaching sheet metal panels, and securing trim and molding. Pan head self-drilling screws can be driven using a Phillips or square drive screwdriver, depending on the specific drive type.

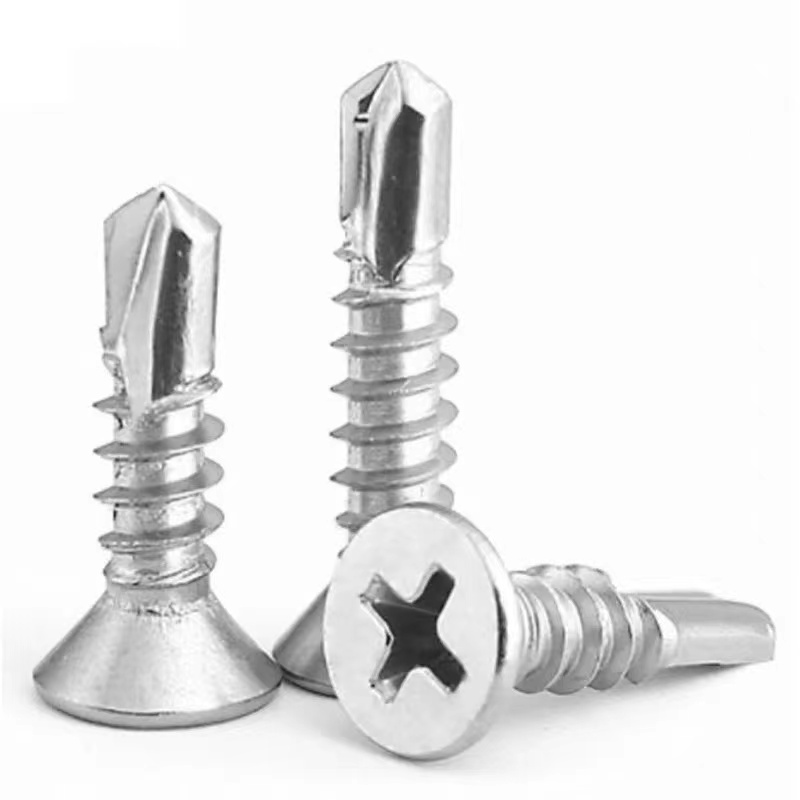

Flat Head Countersunk Self-Drilling Screws
Flat head countersunk self-drilling screws have a conical head that allows them to sit flush with the surface of the material when fully driven. This type of screw is suitable for applications where a smooth, unobtrusive finish is required, such as securing metal panels, attaching hinges and brackets, and joining metal components in automotive and machinery manufacturing. Flat head countersunk screws are available with various drive types, including Phillips, square, and Torx.
Truss Head Self-Drilling Screws
Low Profile truss head self-drilling screws feature a low, wide profile, which provides a large bearing surface and distributes the clamping force over a broader area. These screws are ideal for attaching thin or lightweight materials, such as metal or plastic sheeting, without causing deformation or distortion. The low-profile head also offers a more subtle appearance, making it suitable for applications where aesthetics are a consideration. Modified truss head screws are commonly available with Phillips or square drive options.
Wafer Head Self-Drilling Screws
Wafer head self-drilling screws have a thin, flat head with a small diameter, making them ideal for attaching materials where a low-profile appearance is desired. These screws are often used for fastening metal or plastic panels in electronics, appliances, and enclosures, as well as attaching trim and molding in automotive and construction applications. Wafer head screws can be driven with Phillips or square drive screwdrivers, depending on the specific drive type.
