What is a Torx Screw?
What is a Torx screw? Torx screws were created in 1967, by Camcar Textron, as an enhancement on modern drive kinds. It intended to change Phillips head screws, which were prone to cam-out, and also the interior hex drive, which had a tendency to stop working throughout high torque by settling.
Torx does not cam-out as well as can hold up against greater torques than interior hex at an offered head dimension. Upright sidewalls make the best use of device involvement and also generate no cam-out pressures to press the motorist out of the screw head, causing much less tiredness as no end lots are called for. It’s additionally much less most likely to harm the vehicle driver or driven screw.
Early use Torx consisted of as safety screw heads, dependent entirely on being an unusual vehicle driver kind. Nevertheless, as the drive acquired appeal, various other drives were created to load this function. One layout includes a “facility pin decline,” called Safety Torx, Tamper-Resistant Torx, or pin-in Torx. It’s abbreviated as TR and also has a strong blog post in the facility of the screw outlet that stops a common motorist from getting in as well as calls for an expert hollow-headed motorist.
With a vertical drive angle to the axis of the bolt, Torx drive creates very little radial pressure. This pressure circulation enables a greater torque to be transferred with little possibility of reaming of failing– either of the motorist or the driven screw.
The exterior drive Torx is much less usual, nevertheless, it has actually acquired some appeal in maker screws and also lag screws as an alternate drive head kind to hex.
Torx is offered as an interior as well as outside drive although it is most generally utilized as an outlet within the head (interior).
The inner head dimensions are noted by an uppercase ‘T’ complied with by numbers 1 to 100, with smaller-sized numbers standing for smaller-sized head dimensions. Normal dimensions are T10, T15, and also T25, with inch as well as statistics-sized bolts sharing the very same sized drive devices. An outside drive Torx is noted by an uppercase “E,” adhered to by numbers 4 to 40 (the numbers do not refer to interior Torx).
A Torx screw is a kind of screw identified by a six-lobed, star-patterned screw drive. Torx drive is a hallmark typically described as celebrity drive or, merely, a six-lobe. It’s frequently shortened to TX or 6lobe. The ISO name is hexalobular.
Followers to Torx consist of Torx And also, which was presented in the very early ’90s. Its squarer wattles are guaranteed to enhance drive little bit life by 12. In 2017, the current Torx follower, Torx Paralobe, was launched, providing 20% better torsional stamina and also 20% better drive life than Torx And also.
One more protection screw style influenced by Torx is the five-lobed celebrity pattern, referred to as the pentalobe safety and security screw. It’s been included on Apple items considering that 2009.
Torx tap is a spin-off item guaranteeing a magnet cost-free service to maintaining the screw on the vehicle driver by using the 2nd recess in the head matching a pin on the motorist.
Torx inner drive screws are normally utilized within the auto, consumer electronics, Motorcycle, Bicycle, IT, and also customer electronic devices suppliers. They’re likewise progressively utilized in various other markets, such as in structure and also building.
Torx screw sizes
TORX Dimensional & Screw size Specifications
|Torx Size||Inch point to point||Metric point to point||Max Torque Range|
|T1||.031″||.81mm||.02 to .03 Nm|
|T2||.036″||.93mm||.07 to .09 Nm|
|T3||.046″||1.10mm||.14 to .18 Nm|
|T4||.050″||1.28mm||.22 to .28 Nm|
|T5||.055″||1.42 mm||.43 to .51 Nm|
|T6||.066″||1.70 mm||.75 to .9 Nm|
|T7||.078″||1.99 mm||1.4 to 1.7 Nm|
|T8||.090″||2.31 mm||2.2 to 2.6 Nm|
|T9||.098″||2.50 mm||2.8 to 3.4 Nm|
|T10||.107″||2.74 mm||3.7 to 4.5 Nm|
|T15||.128″||3.27 mm||6.4 to 7.7 Nm|
|T20||.151″||3.86 mm||10.5 to 12.7 Nm|
|T25||.173″||4.43 mm||15.9 to 19 Nm|
|T27||.195″||4.99 mm||22.5 to 26.9 Nm|
|T30||.216″||5.52 mm||31.1 to 37.4 Nm|
|T40||.260″||6.65 mm||54.1 to 65.1 Nm|
|T45||.306″||7.82 mm||86 to 103.2 Nm|
|T50||.346″||8.83 mm||132 to 158 Nm|
|T55||.440″||11.22 mm||218 to 256 Nm|
|T60||.519||13.25 mm||379 to 445 Nm|
|T70||.610||15.51 mm||630 t0 700 Nm|
|T80||.690||17.54 mm||943 to 1048 Nm|
|T90||.784||19.92 mm||1334 to 1483 Nm|
|T100||.871||22.13 mm||1843 to 2048 Nm|
It is essential to match the correct screw drive with the Torx screw size and socket head type.

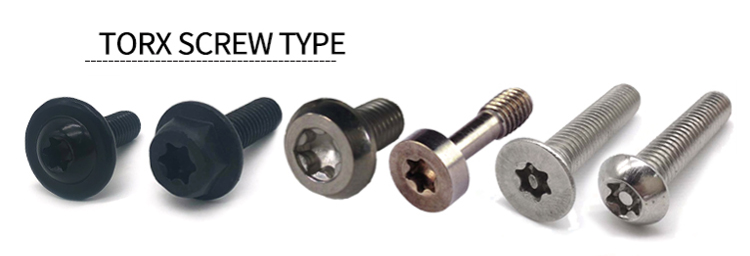

Torx Screw Types
Torx screw types have 6 lobe screws, tamper proof Torx, 6 lobe pin torx, torx TR, torx pin and star pin drive screws.
Difference between star and Torx?
Torx is a licensed product and requires manufacturers to follow their part prints. They are then able to follow the part prints only if they have the authentic license to do that. while star bits are an improvement on the official Torx bits. They have a very precise design so that they can fit well to Torx bits. Its shanks have length and ridges around them that can perfectly come in contact with the Torx bits.
How to Measure a Torx Bit?
Measure the Torx size you need Ruler, Paper, pencil.
Textron’s line of Torx-head little bits, as well as screwdrivers, are made to be made use of particularly with Torx-head screws. The little bits are six-point splines, the private dimensions of which are determined in a standard referred to as “T-sizes.” If you ever before encountered a Torx little bit that’s mislabeled or does not have a T-size on it, you can determine the precise T-size with a leader as well as a graph from Textron.
Line up the ruler on the star-shaped screw tip to measure from one point to the point directly opposite.
Examine the markings on the ruler and write them down.
Compare the measurement with the “P to P” (point to point) column of the above chart to determine your Torx bit’s exact T-size. You can measure in inches or millimeters.
