Eye Bolts Manufacturer

Heatfastener is a high-quality Eye bolts supplier and specialty fastener manufacturer for all kinds of fastener products with stringent specifications, we supply a wide range at competitive conditions, our products range includes over 50.000 different items like bolts, screws, nuts, washer, pin, rivet, etc. Besides DIN standard we supply also according to ISO, UNC, UNF, BSW, BSF, ASTM, and ANSI standards, above all,our well-known specialty is the delivery of deviating sizes and materials to samples or drawing, we is known in the market as a specialist for special fasteners

Heatfastener offers fully customized custom bolts and screws according to your needs. We can bring your fastener design to reality, and everything according to your requirements.

.

Eye bolts

Eye Bolts Details

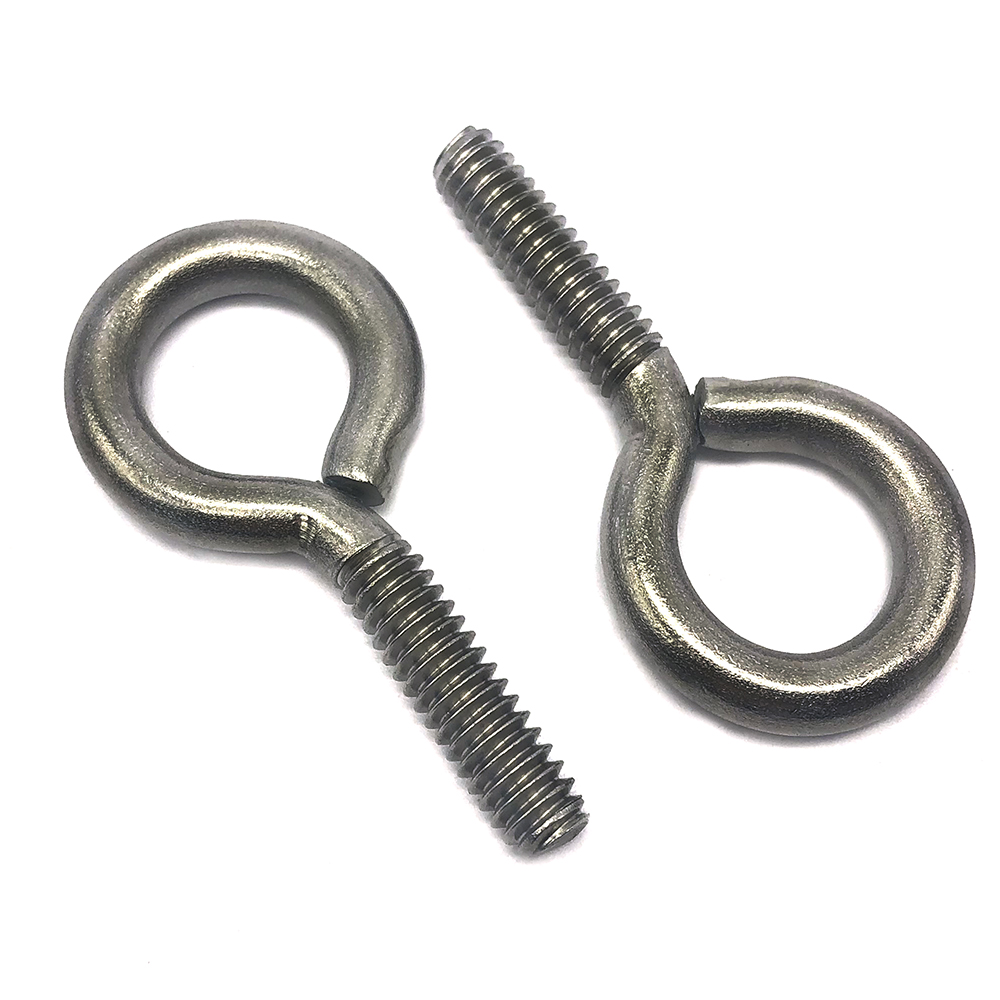

Eye bolts are fasteners that have a round loop on top and can either have a machine screw or a lag thread on the shaft of the bolt. Eye screws are the screw with a loop on one end and threads on the other end. Wire eye lags also called screw thread eye bolts, eye screws, or turned bent eye lags have a wood screw thread for use in wood or lag anchors. Like wire eye bolts, wire eye lags are intended for light-duty applications and should not be used for angular loads.

Heatfastener uses a wide variety of materials to suit any fastener application. A few that we provide include:

  • Stainless steel – SS302, SS304, SS316, (good tenacity)
  • Steel – C45(K1045), C46(K1046),C20
  • Brass – C36000 ( C26800), C37700 ( HPb59), C38500( HPb58),C27200CuZn37), C28000(CuZn40)
  • Bronze–C51000, C52100, C54400, etc
  • Aluminum – Al6061, Al6063 etc
  • Carbon steel – C1006,C1010,C1018,C1022,C1035K,C1045
  • Alloy steel – SCM435,C10B21,C10B339
  • Other material– Titanium, UNS C11000 Copper,silicon

Specification

  • Grade: Grade 4.8,Grade 6.8,Grade 8.8,Grade10.9,Grade12.9 etc
  • Standard:GB,DIN,ISO, ANSI/ASTM,BS,BSW,JIS, Metric, Inch
  • Finish:Plain, H.D.G, Black oxide, Chrome, Teflon,dacromet etc
  • Certificates: ISO9001:2015, ISO14001:2015,IATF16949, ROHS
  • Non standards:OEM is available,according to customer requirments

Features

  • STANDARD PRODUCTION:Fine Workmanship,strictly controlled within the tolerance range
  • HIGH PRECISION:Good abrasion resistance and corrosion resistance
  • OEM&ODM:non standard parts development and produce expert
  • High quality: High quality material for long sevice time

We also supply eye bolts in metric or inch. We can make any style of eye bolt per print with the material and plating that you need.

  • Wire eye bolts (w/ nuts) :Wire eye bolts (also referred to as bent or turned eye bolts) are used for light duty applications, and should not be used for angular loads.
  • Forged eye bolts (w/ nuts):Drop forged eye bolts are significantly stronger than wire eyes and are available in larger sizes. These bolts should not be used for angular loads.
  • Forged machinery eye bolts:Drop forged machinery eye bolts are fully threaded. Machinery eye bolts without a shoulder should not be used for angular loads.
  • Forged eye bolts with shoulder (w/ nuts):Drop forged eye bolts with a shoulder are significantly stronger than wire eyes and are available in larger sizes. These bolts should not be used for angular loads.
  • Forged machinery eye bolts with shoulder:Drop forged machinery eye bolts with shoulder are fully threaded. These can be used for angular loads.
  • Wire eye lags:Wire eye lags (also referred to as screw thread eye bolts, eye screws, or turned/bent eye lags) have a wood screw thread for use in wood or lag anchors. Like wire eye bolts, wire eye lags are intended for light duty applications and should not be used for angular loads.
  • Forged eye lags:Forged eye lags have a lag screw thread for use in light to medium duty wood applications. These bolts should not be used for angular loads.
  • Forged eye lags with shoulder:Forged eye lags with shoulder have a lag screw thread for use in light to medium duty wood applications. These can be used for angular loads.
  • Screw eyes:Screw eyes are similar to wire eye lags, but are specified by trade size and available in smaller sizes. See our screw eye ‘lay-over’ chart for details.

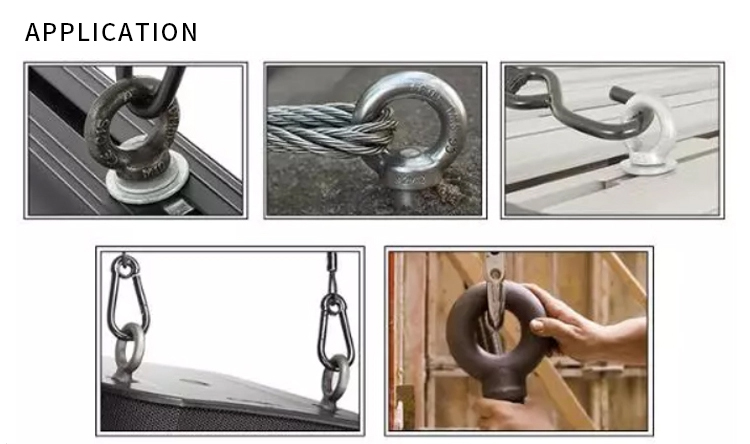

Application

For Lifting

  • Eyebolts
  • Metric Eyebolts
  • Eyebolts with nuts
  • Rotating Eyebolts
  • Low Temperature Eyebolts
  • Low Visbility Eyebolts
  • Nylon-Coated Eyebolts
  • Corrosion Resistant Eyebolts
  • Eye Nuts

For Routing(Not for Lifting)

  • Unthreaded Eyebolts
  • Routing Eyebolts
  • Closed Eye Routing Eyebolts
  • Cable Routing Eyebolts
  • Corrosion Resistant Fiberglass routing Eyebolts
  • Noncondutive plastic routing Eyebolts
  • Routing Ringbolts
  • Removable routing ringbolts
  • Routing Eyebolts for wood
  • Open Eye Routing EYEBOLTS

This is one size we made, any custom bolts are available

Size A(mm)B(mm) C(mm) D(mm) E(mm) F(mm) M(mm) H(mm)
M33713748310
M448 19105104 14
M5511 23136105 17
M661627177116 23
M88193420713827
M10 10234225 9171035
M12122849 29 10201239
M14 122952 311120 14 43
M16 133359 3513251647
M201437674015302053

Custom size and finish and material are available

  • Shouldered Eye Bolts
  • Non-Shouldered Eye Bolts
  • Forged Eye Bolts
  • Bent Eye Bolts.
  • Nut Eye Bolts.
  • Machinery Eye Bolts
  • Screw Eye Bolts
  • Wood Self-tapping Eyebolts
  • Heady duty eye bolts

Need Custom Eyebolts for Your Industry?

As a 20-year industry experience manufacturer with a factory equipped with precision machines, we can provide, from consultation to production, a one-stop solution for you.

About Us

Shenzhen Heat Hardware Co., Ltd is a leading custom screw manufacturer in China founded in 2000 years. We are specializing in custom screws, security screws, Sems screws, Chicago Screws, Weld Screws, Long screws, Micro Screws, Thumb Screws, Set Screws, Custom bolts, carriage bolts, nuts, and other custom Fasteners. With more than 20years of industry experience. We have serviced over 20000customers including the aerospace industry, automotive industry, electronics, mechanical and electrical products, robots, the Medical industry, communications industry, Outdoor sports products, smart appliances, etc. we can provide one-stop fastener customized service for you no matter what kind of custom fastener you need.

Frequently Asked Questions

Screw eye bolts are essentially just a screw with an eye. Also commonly referred to as a lag eye, a screw eye bolt has an eye formed on one end and a threaded shank that tapers to a point. They are used primarily for light applications and are screwed into wood or lag anchors

An eye bolt is a bolt with a loop at one end. They are used to firmly attach a securing eye to a structure, so that ropes or cables may then be tied to it.

The most common types of eye bolts used in industrial applications are nut eye bolts, machinery eye bolts, and screw eye bolts. All three types come in two styles: plain and shoulder. Each type comes in different sizes and finishes

For example, an eye bolt with a 1/4 inch shank can typically hold up to 600 pounds at a straight pull (no angle). However, at a 15-degree angle, the maximum weight capacity drops to 480 pounds (80% of the “straight pull” weight capacity)

Eye Bolts are measured from under the eye. Hanger bolt length is measured from end to end. Shoulder bolt length is measured as the length of the shoulder. Sex bolt length is measured from under the head.

Also known as a screw eye, an eye screw is a unique type of screw that’s characterized by the use of a looped hoop. Most screws, of course, have a flat head or a Philips head. Flat-head screws can be fastened with a flat-head screwdriver, whereas Philips head screws require the use of a Philips-head screwdriver
