Heatfastener
The Best Custom Bolts Manufactuer
Heatfastener has been the best custom flange bolts producer, Manufacturer, factory, and supplier in China since 2000.
We are committed to providing the best quality products and services and fastener solutions for our customers.
With 22 years of customized experience, We can design and produce flange bolts that meet customer requirements according to customers’ different market positioning.
Flange Bolts Details
A flange bolt is a kind of fastener Used in automotive applications, plumbing, and more, flange bolts feature a washer-like flange beneath the bolt head that speeds production time and distributes the clamping load, offering protection to the mating surface. Hex Flange bolts and Hex Serrated flange bolts are very common. Heatfaster can produce various custom flange bolts for different industry application
Flange bolts have a circular flange under the head that acts like a washer to distribute the load. Flange bolts that are non-serrated are sometimes called frame bolts, Serrated hex threads are standard right, Hex and 12 points are available in unified inch coarse series(UNC, Unified National Coarse) and unified inch fine(UNF, Unified National Fine), serrated hex in unified inch coarse, flange bolts are partially and fully threaded depending on size and length, the point for hex types is chamfered or rounded for 12 points, it is flat and chamfered
The flange bolt should be long enough to allow at least two full threads to extend beyond the nut face after tightening, which ensures full thread engagement with the nut, Conversely, there should be two full threads exposed on the head side of the nut to make sure the nut can be properly tightened
| Product Name | Size | Bolts Length | Grade | Standard | Service | Available Material | Surface treatment | Certificates |
|---|---|---|---|---|---|---|---|---|
| Hex flange bolts | M3,M4,M6,M8,M10,M12, TO M56 or custom | 6mm-500mm | 4.6,4.8,5.6,6.8,8.8,9.8,10.9,A2-70,A4-80,etc | ISO, DIN, ASTM, ANSI, JIS, EN, AS | OEM / ODM / customized service provided | Stainless Steel,Carbon steel,Aluminum,Brass,Copper,etc | Nature color,Black oxide,Phosphate,Zinc plated,Dacroment,etc | ISO9001,ISO14001,IATF16949,ROHS |
Hex Flange bolts are used on vehicle frames, especially truck, frames, and anywhere a hex washer head bolt is needed, the large bearing surface distributes clamping force over a large area, allowing them to be used with irregular and oversized holes.
Auto mechanics
To make certain a trusted, durable link in between 2 areas of a huge and also encased location you will certainly require to make use of a flange screw. The very best instance in this instance is the link between the transmission as well as the engine in a car. Both the engine as well as the transmission function have a number of relocating components that can conveniently obtain harmed when tiny items, particles, or dirt gets in. The function of the flange bolt in this situation is to protect the external covering shielding the engine and also transmission.
A more usual application of the flange bolts in the automotive fasteners contains the cars and truck’s exhaust. Changing the standard screw and also washers with flange bolts as well as springs for an automobile’s exhaust assures a boosted stamina and also much better integrity.
flange bolts for pipes
Pipes
When attempting to attach 2 pipelines with each other, plumbings have various choices at their disposal. Without rejecting the effectiveness of welding or soldering the air ducts with each other, allow’s not to neglect that cyndrical tubes secured using either of the approaches are much more prone to rupture when subjected to high pressure. A more secure means of linking pipes with each other suggests protecting their ends with flanged bolts. By doing this, plumbing technicians can be certain the pipelines will certainly hold, despite the sorts of gas or fluid inside the air ducts.
Large applications
Large and Long flange bolts and also specifically the ones that gauge 30 centimeters in size are generally utilized in large mechanical applications. Comparable to various other kinds of flange screws, these lengthened bolts are readily available in a vast array of shaft sizes and also can be used in the building and construction of oil rigs, power plants, producing plants, huge vehicles as well as ships.
Hard-to-reach applications
Whenever you’re compelled to operate in a confined, difficult-to-access as well as a dark place, after that you wish to utilize a

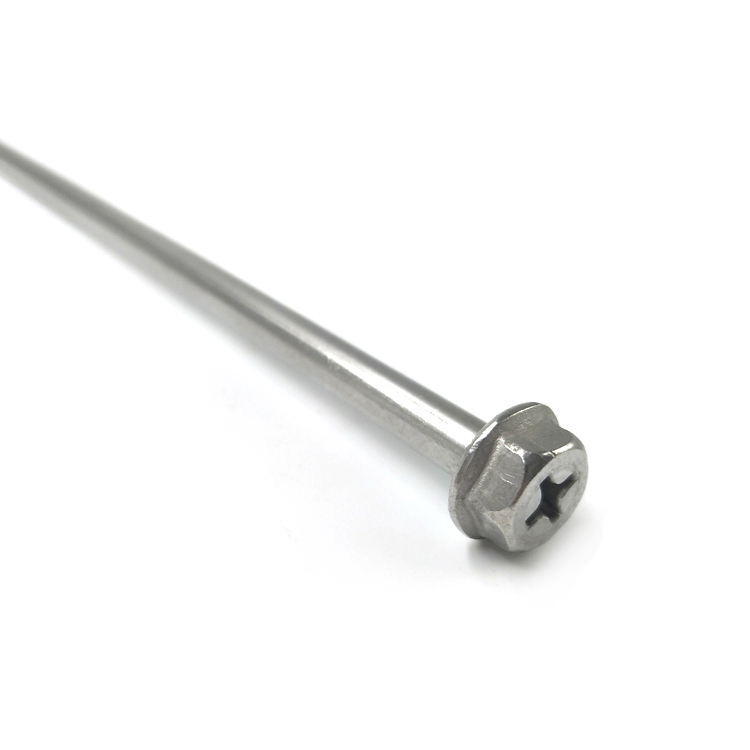

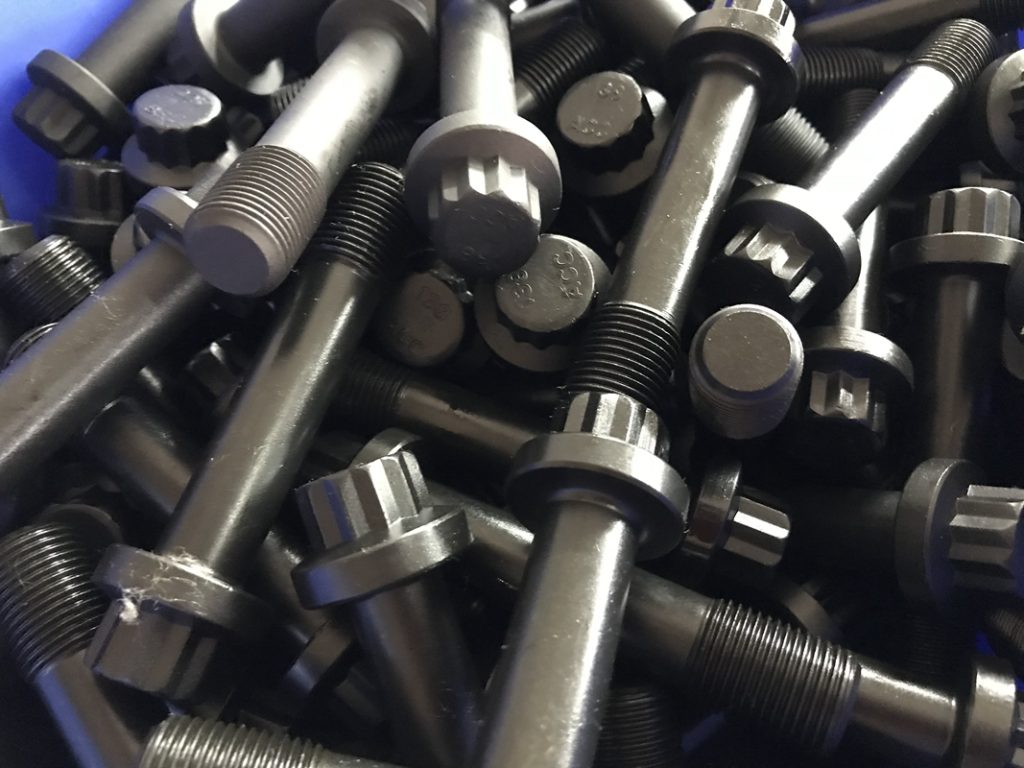

Heatfatener has produced many kinds of flange bolts types for our customers. like 12 point flange bolt stainless steel, security flange bolts, copper and brass large flange bolts, Phillips Long Flange Bolts, Serrated Flange bolts, aluminum flange bolt, titanium bolts, etc

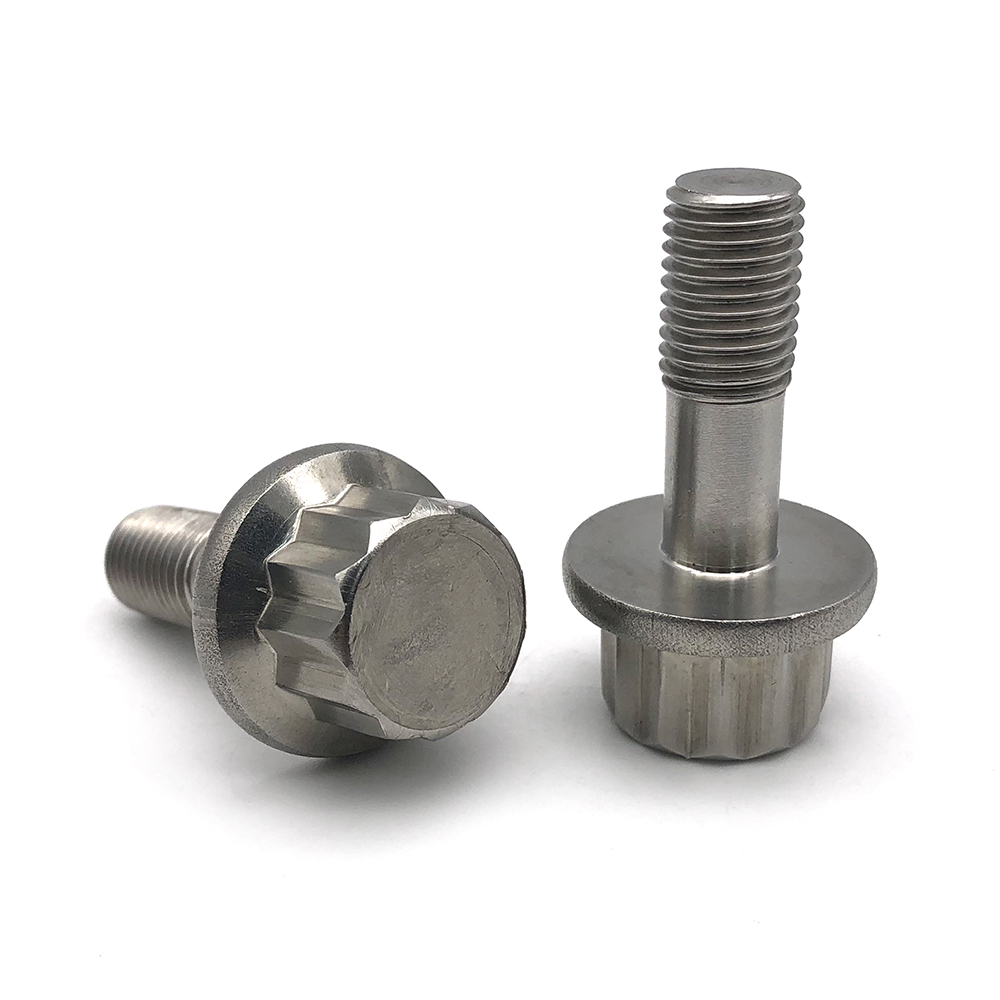

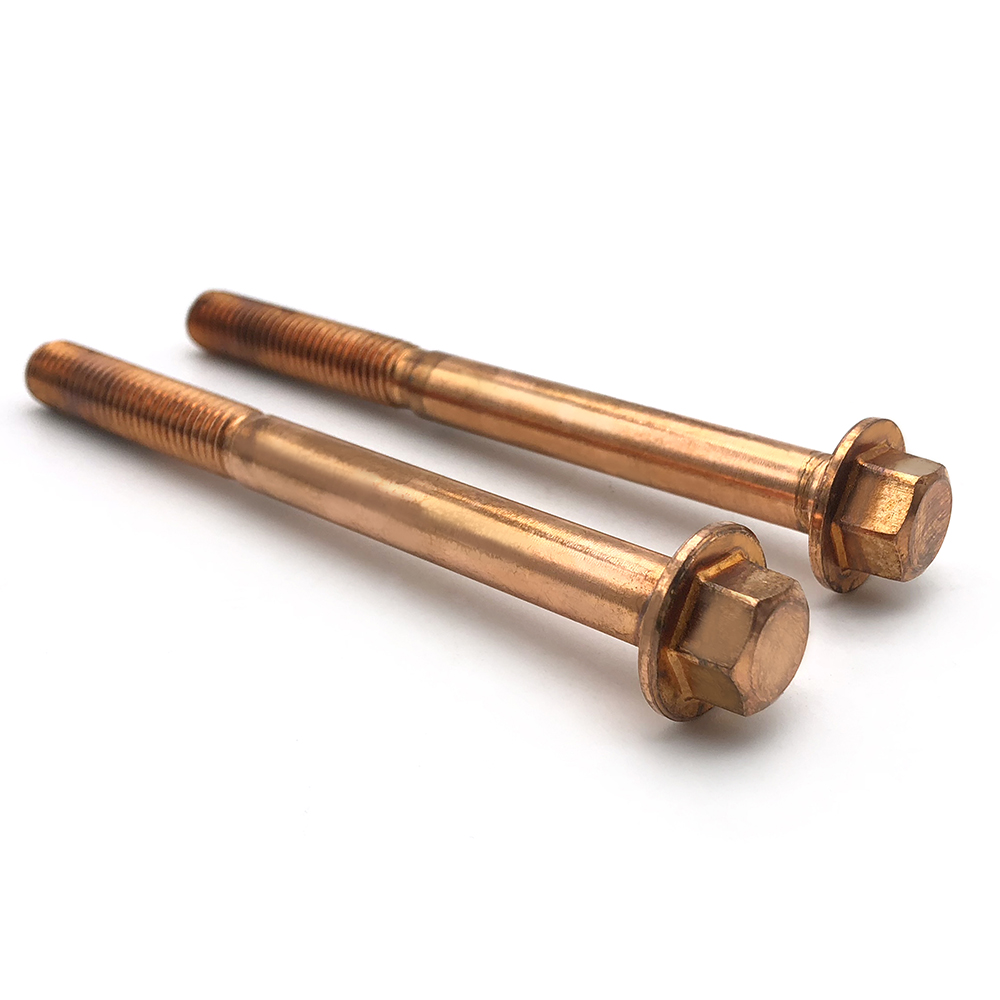

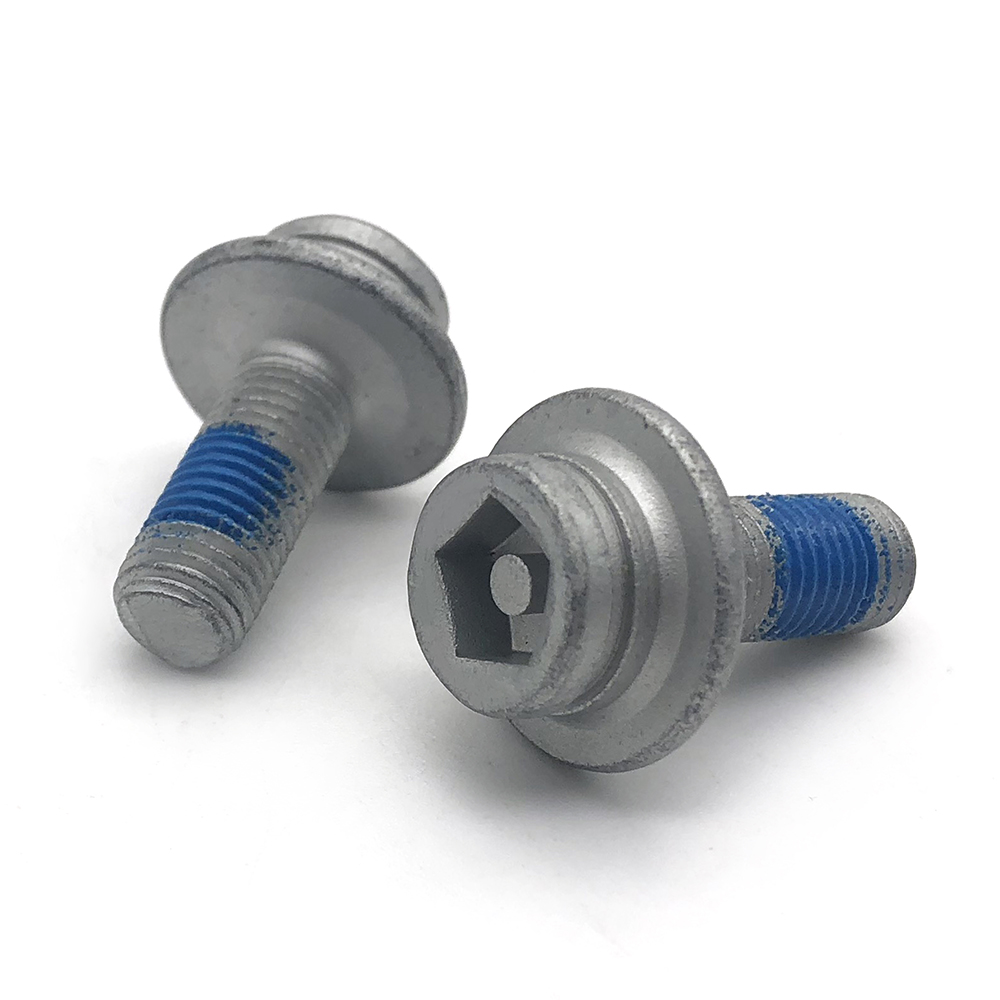

12 point flange bolt hex pin security bolt with nylon patch copper hex long flange bolt
stainless steel long hex bolts

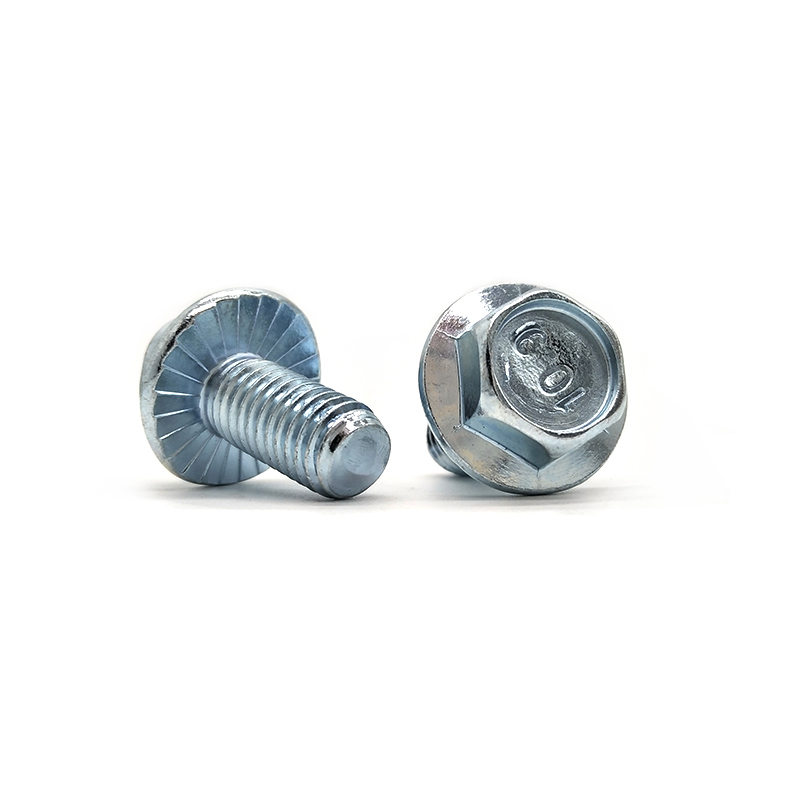

serrated flange bolt

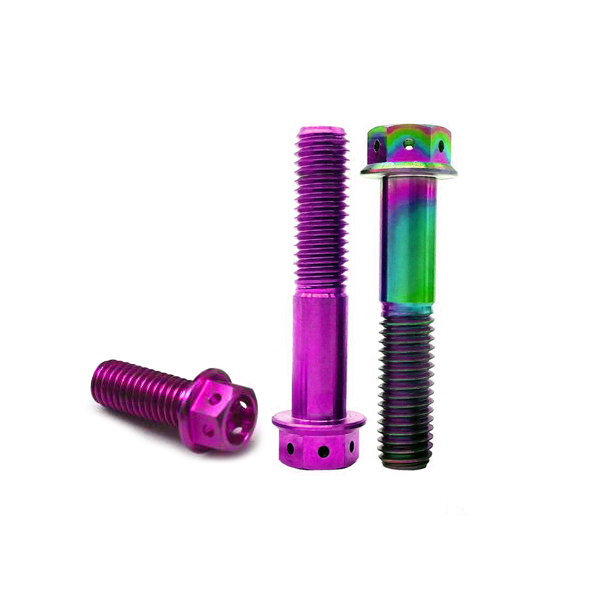

Titanium Flange Bolt
| M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 |
|---|---|---|---|---|---|---|---|
| M5X10 | M6X10 | M8X10 | |||||
| M5X12 | M6X12 | M8X12 | M10X12 | ||||
| M8X14 | |||||||
| M5X16 | M6X16 | M8X16 | M10X16 | ||||
| M5X18 | M6X18 | M8X18 | M10X18 | ||||
| M5X20 | M6X20 | M8X20 | M10X20 | ||||
| M5X25 | M6X25 | M8X25 | M10X25 | M12X25 | M14X25 | M16X25 | |
| M5X30 | M6X30 | M8X30 | M10X30 | M12X30 | M14X30 | M16X30 | |
| M5X35 | M6X35 | M8X35 | M10X35 | M12X35 | M14X35 | M16X35 | |
| M5X40 | M6X40 | M8X40 | M10X40 | M12X40 | M14X40 | M16X40 | |
| M5X45 | M6X45 | M8X45 | M10X45 | M12X45 | M14X45 | M16X45 | |
| M5X50 | M6X50 | M8X50 | M10X50 | M12X50 | M14X50 | M16X50 | |
| M5X55 | M6X55 | M8X55 | M10X55 | M14X55 | M16X55 | ||
| M5X60 | M6X60 | M8X60 | M10X60 | M12X60 | M14X60 | M16X60 | |
| M5X65 | M6X65 | M8X65 | M10X65 | M12X65 | M14X65 | M16X65 | |
| M5X70 | M6X70 | M8X70 | M10X70 | M12X70 | M14X70 | M16X70 | |
| M5X75 | M12X75 | M14X75 | M16X75 | ||||
| M5X80 | M6X80 | M8X80 | M10X80 | M12X80 | M14X80 | M16X80 | |
| M10X85 | M12X85 | M14X85 | M16X85 | ||||
| M6X90 | M8X90 | M12X90 | M14X90 | M16X90 | |||
| M8X95 | M12X95 | M14X95 | M16X95 | ||||
| M6X100 | M8X100 | M10X100 | M12X100 | M14X100 | M16X100 | ||
| M6X110 | M8X110 | M10X110 | M12X110 | M14X110 | M16X110 | ||
| M6X120 | M8X120 | M10X120 | M12X120 | M14X120 | M16X120 | ||
| M6X130 | M8X130 | M10X130 | M12X130 | M14X130 | M16X130 | ||
| M8X140 | M10X140 | M12X140 | M14X140 | M16X140 | |||
| M8X150 | M10X150 | M14X150 | M16X150 |
custom flange bolts are available
Are You Looking For Custom Bolt Manufacturer?
As a 20-year industry experience manufacturer with a factory equipped with precision machines, we can provide, from consultation to production, a one-stop solution for you. For an accurate quotation, you need to tell us the following information:
Specification
Please tell us the specific details, like what is material and finish do you, and the fastener size, if you have drawings or pictures, please send them to us
Quantity
Normally small order quantities are acceptable, while large quantities can help us to lower the cost and get you a more competitive price.
Application
Tell us your application or detailed information for your projects. We can offer you the best choice, meanwhile, our engineers can give you more suggestions under your budget.
What We Can Offer
Best Quality
We have rich experience in the manufacture, design, and application of custom fasteners, and served more than 10000 customers worldwide
Competitive Price
we have an absolute advantage in the cost of raw materials. Under the same quality, our price is generally 10%-30% lower than the market.
Test
With more than 22 years, we already have completed the control system and test equipment, we can provide all tests you need
After-Sale
Any feedback will be replied to within 24hours, We provide a 3-5 years guarantees policy. And all costs by us will be on our account.
Fast delivery
If you need urgently, we can deliver samples within 8hours. Bulk order can be within one week
Certificates

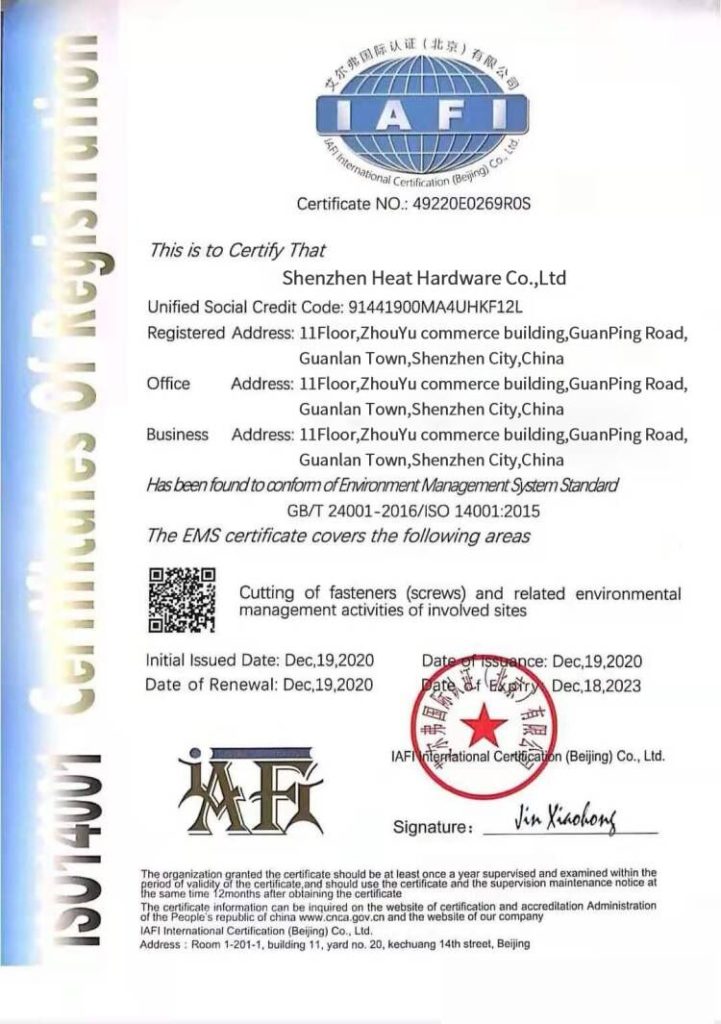

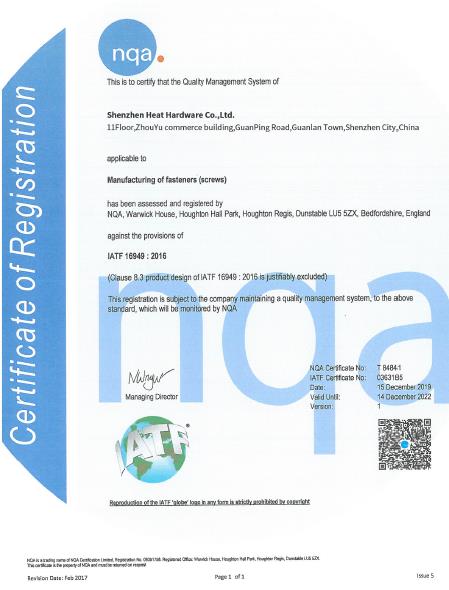

We are ISO 9001:2015 certified, IAFT16949 certified for the automotive industry.ROHS certified. all of our materials are environment-friendly. We can provide all certifications necessary, chemical and physical. Since 2000, we have been proudly supplying customers with custom screws and custom bolts for fastener solutions. Our quality and service stay unparalleled.
These certified custom fasteners can ensure the stable quality of products and avoid potential after-sales hazards to your projects. At the same time, the certified custom screws and bolts can guarantee the life of the product.
About Us
Shenzhen Heat Hardware Co., Ltd is a leading custom screw manufacturer in China founded in 2000 years. We are specializing in custom screws, security screws, Sems screws, Chicago Screws, Weld Screws, Long screws, Micro Screws, Thumb Screws, Set Screws, Custom bolts, carriage bolts, nuts, and other custom Fasteners. With more than 20years of industry experience. We have serviced over 20000customers including the aerospace industry, automotive industry, electronics, mechanical and electrical products, robots, the Medical industry, communications industry, Outdoor sports products, smart appliances, etc. we can provide one-stop fastener customized service for you no matter what kind of custom fastener you need.
