Stainless steel Phillip Truss Head Self Drilling Screw|Machine Screw
Type:Stainless steel screws,Phillip head screws,Machine screws,truss head screws,truss head self drilling screws
Material: Stainless steel
Finish: Passivated
Size:M4,M5,M6,M8,M10,M12,M14,M16,M20,M22,M24,M28,M30
Standard: Inches, Metric
Specification
The truss head screws also called big head screws which can be machine screws or self-tapping screws,including truss head self drilling screws,truss head self tapping screw,truss head machine screws. and the above one is machine thread. Its head is rounder than the pan head screws and the round head screws, the head is larger than the pan head, and the thickness is smaller, so from the shape and appearance, it is flat, so it is called a big flat head screwsmThe screw has another cross recess on the head. So it’s a Phillips flat head screw. There are standard parts and non-standard screws, but if you need M2 screws, but the head needs to be made into the size corresponding to M3, it is a non-standard part. Heatfastener is a manufacturer that focuses on making non-standard screws. Special, special-shaped, can do as well.
Self tapping screw and truss head self drilling screws are a kind of screw that is used more, and the cross big flat head self-tapping screw is expressed as TA by. also called truss self tapping screws, Phillips truss self-tapping screws are also precision screws. Generally, the ones commonly used in the market are relatively small screws. Phillips large flat head self-tapping screws are M2, M3, M4, M5, M6, etc. This refers to the diameter of the cross big flat head self-tapping screw. The length of the cross big flat head self-tapping screw is 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm and so on. The measurement of the length of the cross big flat head self-tapping screw does not include the thickness of the head of the big flat head.
The cross-recessed truss self-tapping screw and truss head self drilling screw has a large flat head, which increases the force bearing area and makes the head less likely to be damaged. And the screw with a big flat head also has the characteristics of easy installation and not easy to deform, which has been deeply loved by people in recent years.

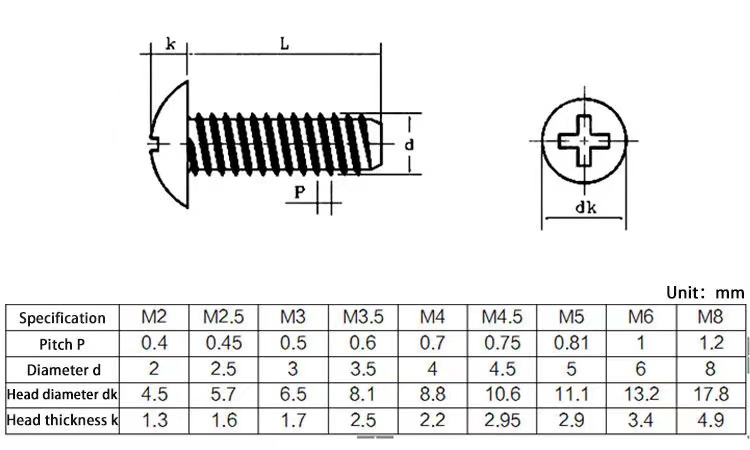

Large head-Truss head machine screws sizes
| Specification | M2 | M2.5 | M3 | M3.5 | M4 | M4.5 | M5 | M6 | M8 |
|---|---|---|---|---|---|---|---|---|---|
| Pitch P | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.75 | 0.81 | 1 | 1.2 |
| d | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 6 | 8 |
| Head diameter dk | 4.5 | 5.7 | 6.5 | 8.1 | 8.8 | 10.6 | 11.1 | 13.2 | 17.8 |
| Head thick ness K | 1.3 | 1.6 | 1.7 | 2.5 | 2.2 | 2.95 | 2.9 | 3.4 | 4.9 |
