Thumb Screws

Custom fasteners Manufacturer

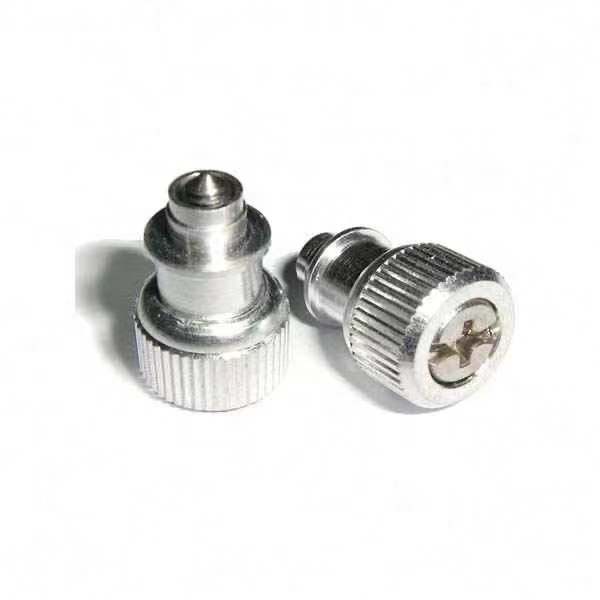

Spring Loaded Captive Thumb Screws

Type: Spring-loaded captive screws, Captive Thumb Screws

Material: Stainless steel

Finish: Passivated

Size:M4,M5,M6,M8,M10,M12,M14,M16,M20,M22,M24,M28,M30

Standard: Inches, Metric

Specification

Captive screws are also called captive panel screws, or captive bolts. It features a small-diameter thread, relying on the small-diameter thread to hang the screw on the connecting piece (or through the clamping sleeve and clamping spring) to prevent the screw from falling off. The screw structure itself does not have an anti-falling function. The anti-falling function of the screw is realized through the connection with the connected part, that is, the small diameter thread of the screw is stuck on the mounting hole of the connected part through the corresponding structure to prevent falling off.

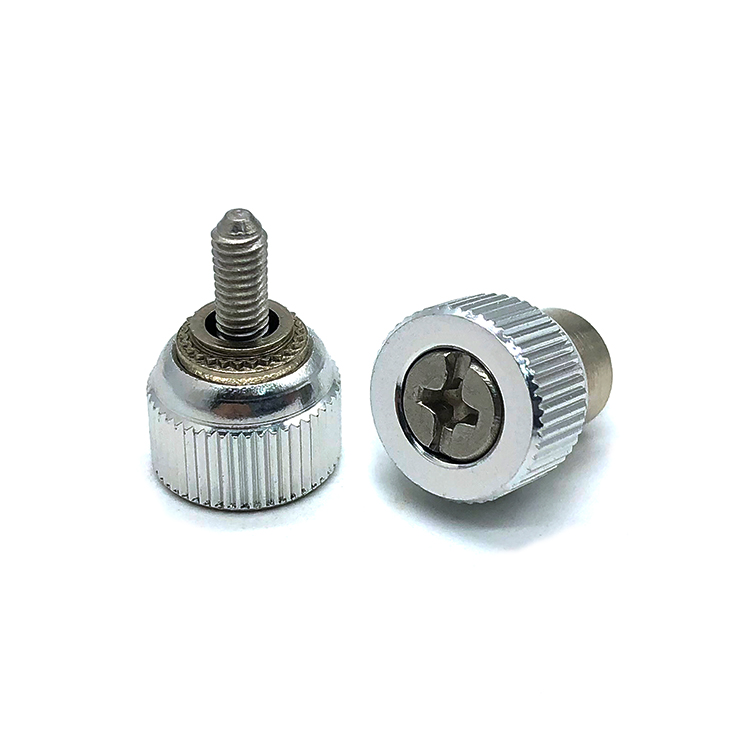

The spring loaded captive screw is composed of four parts: a hand-tightening sleeve, a riveting sleeve, a screw and a spring. Twist sleeves generally have straight knurled,we also called knurled Captive Thumb Screws.

  • Screw part: According to the material, it can be produced by carbon steel and stainless steel. In order to facilitate the installation, the head is generally made into a slotted or phillips. The screw part mainly plays the role of connecting with the parts.

  • Twist sleeve: generally made of aluminum, the surface should be straightened and patterned, the surface can be made of natural, or it can be made of oxidized black or anodized

  • Pressure riveting sleeve: generally carbon steel or stainless steel, its function is mainly to connect with sheet metal.

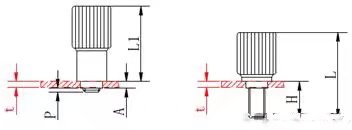

How to Install Spring Loaded Captive Thumb Screws?

  1. Place the captive screws into the grooved base fixture
  2. Drill the installation holes of the corresponding size on the plate and make the holes
  3. Lay the panel on top of the spring-loaded captive screws
  4. Adjust the relevant parameters of the riveting equipment, press evenly, and make the positioning ring expand
  5. The reduced diameter section is reached, retaining the screw on the panel and the installation is completed.
