Wall Plugs

Custom Wall Plugs Manufacturer

Heatfastener

Best Wall Plugs Supplier

Heatfastener is a Wall Plugs supplier and manufacturer for all your fixing and anchors needs.

  • ISO9001, IAFT16949 Certificated
  • High precision CNC MACHINE
  • Precision+/-0.05mm CNC+/-0.02
  • 22Year Experience
  • In House Lab: Sclerometer, Hardness tester, Caliper, Torsion meter, Salt atmosphere testing machine, Projector, Die gage, Image screening instrument spectrometer

.

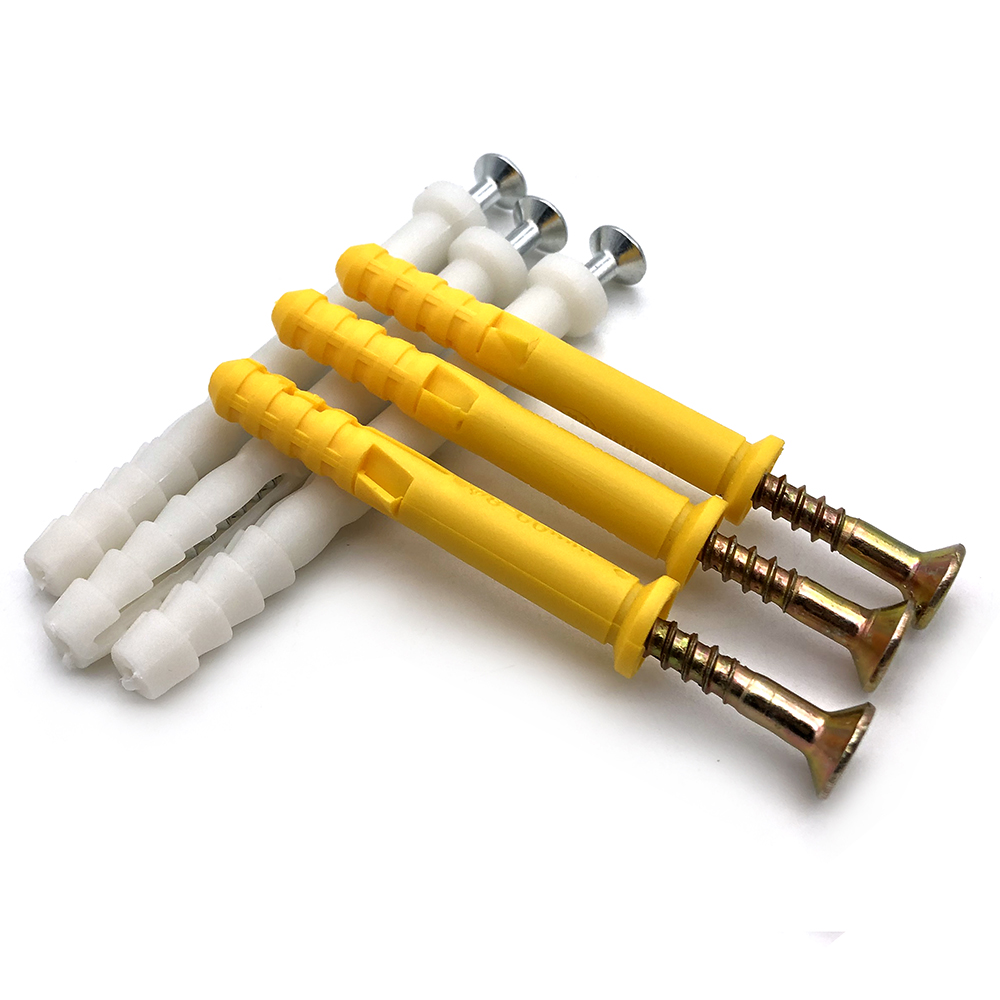

wall plugs

Wall Plugs and Fixing Specification

Wall plugs also known as an anchor, are small plastic plugs or fiber(originally wood) insert used to enable the attachment of a screw-in material that is porous or brittle or that would otherwise not support the weight of the object attached with the screw. It is a type of anchor that, for example, allows screws to be fitted into masonry walls. The range has various different types and levels of strengths so it is important to find the correct wall plug for the task, yet one of the most typical concepts is to use a tapered tube of soft material, such as plastic. This is inserted loosely into a drilled hole, then a screw is tightened into the center. As the screw enters the plug, the soft material of the plug expands conforming tightly to the wall material. Such anchors can attach one object to another in situations where screws, nails, adhesives, or other simple fasteners are either impractical or ineffective. Various kinds have various degrees of strength and also can be utilized on various kinds of surface areas.

Installation

  • Drill a hole just slightly larger than the barrel of the anchor
  • Drive the anchor into the hole and sink the teeth into the wall surface
  • Press down firmly and turn the bolt clockwise until the barrel crimps against the inside of the wall
  • With the barrel pressing against the inside wall,
installation of wall plugs

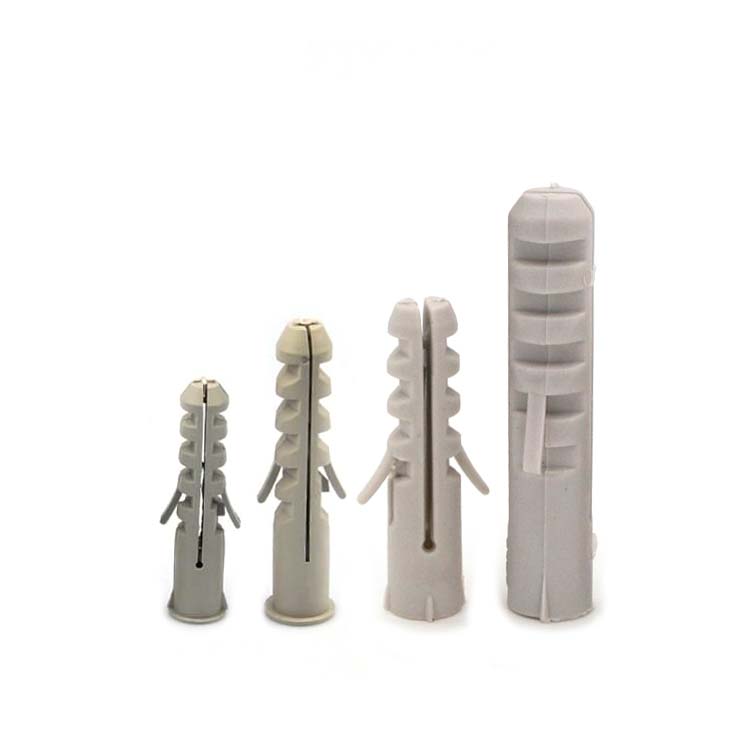

plastic wall plugs

Types of Wall Plugs

Plastic anti-rotation expansion Wall Plugs

Ideal for things fixed by Lag Screws and Particleboard screws, such as cabinet, switch, and so on. The structure of the Nylon anchor with screw is novel and simple which can save raw materials. It has a simple operation and is more widely applicable. After installation, their strong points are bright, clean, aesthetic, and functional on the surface. Suitable substrate: concrete, natural stone, wall brick. Aylon anchors resistant to rust, corrosion resistance, aging resistance,both light and tough, can be remove easily

Nylon anchors with screws are mainly nylon and screw.

The material is divided into plastic and nylon; From the installation is divided into Hammer framing fixing with two wings and Hammer Drive Anchor With Nail Screw. The effect of Hammer framing fixing with two wings is better than Hammer Drive Anchor with a nail screw.

Dimension Of Wall Plugs and Fixing

Drill holePlug LengthScrew DiaMin DepthMax fixture thickness
6354535/65
6354535/620
8506050/65
8506050/625
10607060/615
10607060/635
chart of wall plugs
dimension and sizes of anchor

Advantage Of our Wall Plugs

  • Material: High-quality plastic and steel
  • Technique: Insulation nails are made by a largely automatic injection-molding machine to produce.
  • Use: The insulation nails can be widely used in the floor heating industry, power plants, petrochemical external wall insulation engineering, architectural wall reinforcement, noise, the construction industry, and dill diameter 8or10. Available in different lengths fitting to the thickness of insulation board. We can make all kinds of plugs according to buyers’ demanding
  • Suitable for fire resistant stainless steel insulation fixing
  • Made out of stainless steel material for corrosion resistance
  • Fast and simple hammer-set installation reduces working times
  • An extensive dimensional range allows anchorage of insulation boards up to 250 mm thick
  • A simple hammer-set installation that reduces working times
  • Offer the maximum holding power in drywall materials.Its fine centered point helps guide the anchor into the wall with flaw less precision
  • Specification: 10*60,10*80,10*90,10*100,10*110,10*120,10*140,10*160,10*180,10*200,10*220

Other Fasteners You May Interest in

Need Custom Fasteners for Your Industry?

As a 20-year industry experience manufacturer with a factory equipped with precision machines, we can provide, from consultation to production, a one-stop solution for you.

Contact Us

Are you looking for screw manufacturers?

24hours online Service

Frequently Asked Questions

ensure screws driven into masonry walls provide a secure fixing. Without them, screws would not grip into masonry and would not provide adequate compressive force to ensure a secure, permanent fixing.

Consider the weight of the object. The weight of the object you wish to hang will determine the screw gauge you’ll need, and the screw gauge will determine the correct wall plug. The gauge of a screw is the diameter of the non-threaded portion. Larger numbers indicate a larger diameter.

Wall plugs are essential when hanging cabinets, mirrors and shelves – in fact anything you want to attach to your walls. A normal screw will not securely stay in plasterboard or masonry without a wall plug

Simply drill the required size hole into your plasterboard, push in the universal plug and insert and tighten the screw. Universal wall plugs tend to hold well against the plasterboard, ensuring a strong, reliable fixing.
