Heatfastener
Plastic Screws
Supplier
Heatfastener was established in 1998, a professional producer in the design and production of plastic screws, custom screws, custom bolts, and other customer fasteners. Our company has various types of advanced high precision CNC machines, automatic lathes, CNC milling machines, grinding machines, drilling machines, screw heading machines, tapping machines, and other processing machines. We can produce according to customer’s requirements. In the meantime, there are lots of inspecting machines in our factory, such as projector, salt spraying tester, accelerometer, center-height gauge, torsion tester, film thickness tester, Spectrometer together with technical well-qualified teams to satisfy the demands of each client. We are keeping moving with the motto of “foundation is based on quality, while development is founded in reputation”. With our excellent product quality, good service and very competitive prices, precise production, our products have a good reputation within the industry. Our products become a well-known brand, and they are used by many international and domestic well-known telecom and computer manufacturers, such as Foxconn, Amphenol, Huawei.
With ISO9001:2008,iso14001:2004, and especially IAFT16949:2009 certification for the automotive industry. Heatfastener offers fully customized custom bolts and screws according to your needs. We can bring your fastener design to reality, and everything according to your requirements.

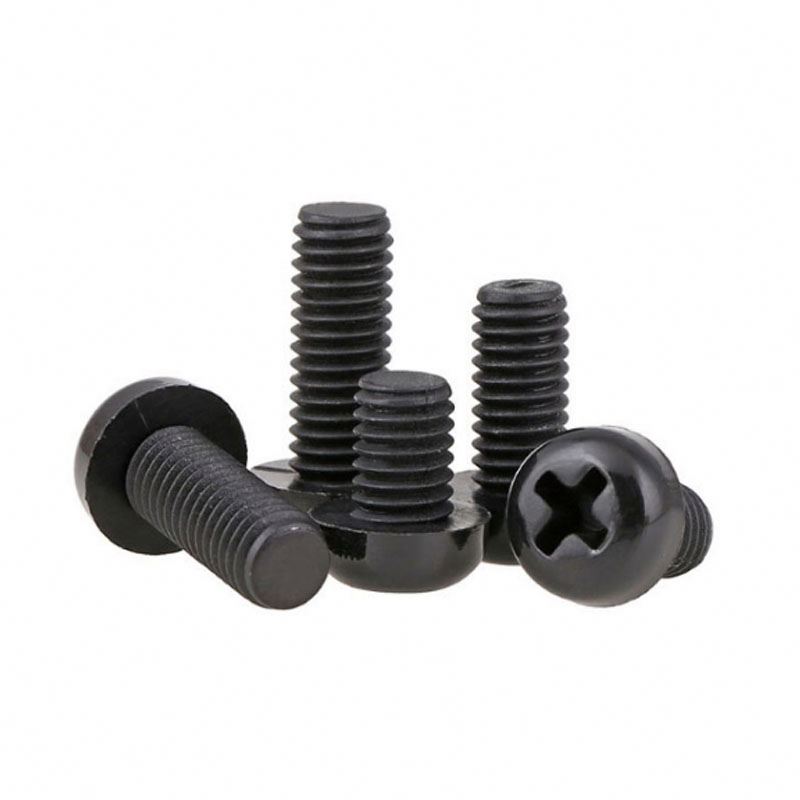

Plastic Screws Details
Plastic fasteners including plastic screws, plastic bolts, and nuts also called Nylon screws, bolts, nuts, compared with ordinary metal screws, the biggest advantage is that they have good insulation properties and are not conductive, Because of the nonmetallic manufacturing, there will be no signal interference such as eddy current under the influence of current or other electrical signals, and its anti-interference is a bit suitable for industries such as communications, plastic screws have better acid and alkali resistance, the best PVDF screws are followed by polypropylene, both of which have strong acid and alkali resistance
Plastic screws and bolts come in different lengths, materials. We can also manufacture these items in special materials and custom made as below listed:
Materials:
Material: PA
Color:natural
Qualities: good dynamic characteristics, friction and wear resistance is more
excellent compared with other engineering plastics, good oil resistance, used
in the temperature below 100°C
Material: PP
Color: white
Qualities: good water resistance, chemical resistance(stable performance of chemical
environment) and electrical properties, used in the temperature below 80°C
Material: PVC
Color:gray
Qualities: outstanding water resistance, prevention of acid/alkali, inflammability
and insulation, used in the temperature below 70°C
Material: PC
Color:transparent
Qualities: outstanding resistance to shock, good UV resistance, and be suitable for
outdoor, used in the temperature below 115°C
Material: PVDF
Color:natural
Qualities: excellent chemical resistance, abrasion resistance, flexibility,
anti-expansion strength and impact resistance strength; used in the temperature
below 150°C
Material: PPS
Color:natural
Qualities: good prevention of acid/alkali and withstanding high temperatures, size
and the material won’t change in high temperature and high humidity environment, used
in the temperature below 240°C
Material: PEEK
PEEK is a kind of heat-resistant, high-performance thermoplastic special engineering plastic. It has good mechanical properties and chemical resistance, abrasion resistance, hydrolysis resistance properties, etc.; it has a light proportion and self-lubricating properties.
Material: PA66
Qualities: Poly (hexamethylene adipamide), Polyamide 66, or Nylon 66 (PA66) is an engineering-grade thermoplastic. PA66 has higher strength but lower impact resistance than PA6
Others:
- Grade: Grade 4.8,Grade 6.8,Grade 8.8,Grade10.9,Grade12.9 etc
- Standard:GB,DIN,ISO, ANSI/ASTM,BS,BSW,JIS, Metric, Inch
- Certificates: ISO9001:2015, ISO14001:2015,IATF16949, ROHS
- Custom Made:OEM is available,according to customer requirments
Head type&Drive Type
- Head Type:Flat, Oval, Binding, Pan, Round, Truss, Button, PF,Cheese,Fillister, Pan Washer, Cylinder,Hexagon, Indented Hexagon,Washer
- Drive Type:Phillips, Slotted, Phiilips/Slotted, 6 Lobe, Pin 6 Lobe, Pozidrive, Square, Triangle,Y type. Tri-wing, S-type, H type, Hexagon, 5 Point,8 point, Spline, Spanner, Clutch, Hex pn,torx pin
- Machine Screw, Tapping screws,threading cutting screw,threading forming screw
Application
Exhibiting high temperature and electrical resistances, polyamides (nylon) are considered high-performance plastics and are widely used in automotive & transportation markets, consumer goods, and electrical and electronics applications among others. Learn more about this interesting class of plastics along with the main applications and benefits of some common polyamides: PA11, PA12, PA46, PA6, PA66, and PPA (polyphthalamides). Explore more about their key properties like mechanical, thermal, electrical, etc., conditions to process this polymer, and understand what makes Polyamides an ideal choice in high-end engineering applications.
Also, our custom fastener, bolts, screws are widely used in the below industries
- Electronics
- Petrochemicals
- Consumer products
- Transportation
- Agriculture
- Heavy machinery
- Construction
- Automotive
- Medical
- Military
- Aerospace
- Oil and gas

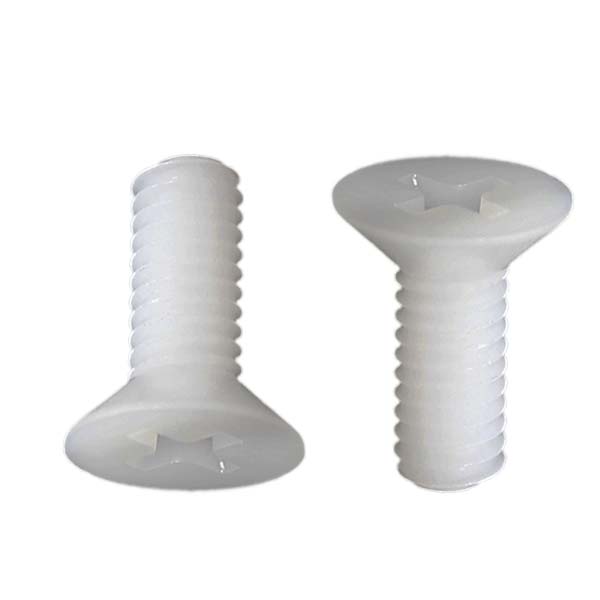

According to the shape of the head, it can be divided into pan head plastic screws, countersunk head plastic screws, external hexagon plastic screws, internal hexagon plastic screws, plastic set screws, plastic thumb screws, etc
Benefits:
Product Properties:
1. Corrosion Prevention, UV Resistance, Withstands High/Low Temperatures,
2. Prevention Of Acid / Alkali, High Voltage Resistance, Insulation.

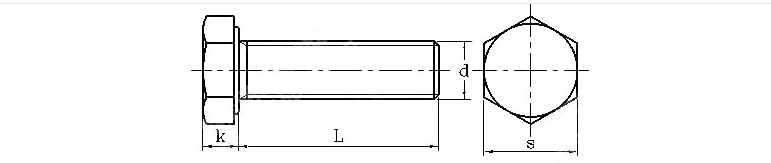

We supply all kinds of custom plastic screws and bolts from Micro M1 to Large long M40
| k | k | k | k | s | s | s | ||
|---|---|---|---|---|---|---|---|---|
| A | A | B | B | max | min | min | ||
| Nominal diameter （D） | Thread （p） | max | min | max | min | A | B | |
| M4 | 0.7 | 2.92 | 2.62 | 3 | 2.8 | 7 | 6.78 | 6.64 |
| M5 | 0.8 | 3.65 | 3.35 | 3.74 | 3.26 | 8 | 7.78 | 7.64 |
| M6 | 1 | 4.15 | 3.85 | 4.24 | 3.76 | 10 | 9.78 | 9.64 |
| M7 | 1 | 4.95 | 4.65 | 5.04 | 4.56 | 11 | 10.73 | 10.57 |
| M8 | 1.25 | 5.45 | 5.15 | 5.54 | 5.06 | 13 | 12.73 | 12.57 |
| M10 | 1.5 | 6.56 | 6.22 | 6.69 | 6.11 | 17 | 16.73 | 16.57 |
| M12 | 1.75 | 7.68 | 7.32 | 7.79 | 7.21 | 19 | 18.67 | 18.48 |
| M14 | 2 | 8.98 | 8.62 | 9.09 | 8.51 | 22 | 21.67 | 21.16 |
| M16 | 2 | 10.18 | 9.82 | 10.29 | 9.71 | 24 | 23.67 | 23.16 |
| M18 | 2.5 | 11.72 | 11.28 | 11.85 | 11.15 | 27 | 26.67 | 26.15 |
| M20 | 2.5 | 12.72 | 12.28 | 12.85 | 12.15 | 30 | 29.67 | 29.16 |
| M22 | 2.5 | 14.22 | 14.35 | 14.35 | 13.65 | 32 | 31.61 | 31 |
About Us
Shenzhen Heat Hardware Co., Ltd is a leading custom screw manufacturer in China founded in 2000 years. We are specializing in custom screws, security screws, Sems screws, Chicago Screws, Weld Screws, Long screws, Micro Screws, Thumb Screws, Set Screws, Custom bolts, carriage bolts, nuts, and other custom Fasteners. With more than 20years of industry experience. We have serviced over 20000customers including the aerospace industry, automotive industry, electronics, mechanical and electrical products, robots, the Medical industry, communications industry, Outdoor sports products, smart appliances, etc. we can provide one-stop fastener customized service for you no matter what kind of custom fastener you need.
