Beveled Washers Manufacturers
Heatfastener carries a wide variety of Beveled washers. we can supply the washers you are looking for. If you are looking for a washer that is not off the shelf, we can make washers specifically to the dimensions, material, and plating that you need. Our custom runs can be as low as 100 pieces all the way to hundreds of thousands. We can supply washers as small as 0.062 inside diameter all the way to 12”. If you are looking for a thin washer (0.002” thick) to a thicker washer, 1/2” thick, we can supply it. We can also supply the plating you need, from common zinc, and zinc/yellow to Magni coatings. Heatfastener can do special washers in many materials, from steel, to harden steel, brass, plastic, various grades of stainless steel, exotic materials such as Inconel, silicon bronze, and many more.
Heatfastener Specialty Manufacturing has been working with original equipment manufacturers for over 100 years, providing excellent and timely customer service. Our team of highly trained professionals utilizes only the latest technology and processing methods to manufacture all of our flat washers. We carefully monitor each washer to be sure it is made to precision. You’ll be satisfied with the end results.
What is a Beveled Washer?
Additionally referred to as cupped spring washers, a beveled washer is defined by an irregular, tilted style. They aren’t flat like their simple counterparts. plain washers are flat, whereas beveled washers are angled.

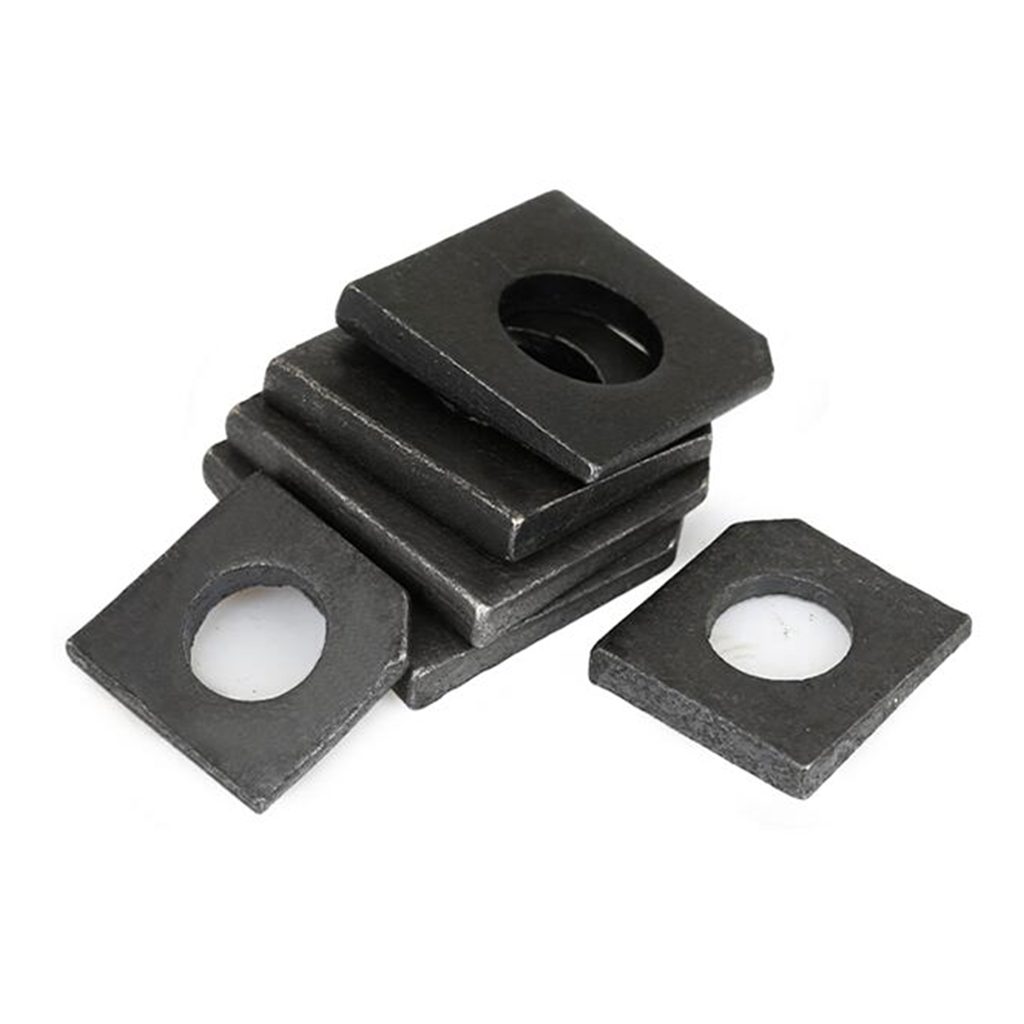

You can discover beveled washers in various shapes. A few of them are round, resulting in a similar appearance to plain flat washers. Round beveled washers are essentially the same as flat washers except they are angled. Other beveled washers are square-shaped. They are still angled, yet they include a square shape when watched from a top-down viewpoint.
A beveled washer is load-distributing equipment components. Like all washers, they operate in combination with a fastener. Beveled washer, though, doesn’t feature the very same style as flat washers. plain washers s are flat. beveled washers, on the other hand, are tilted. They have a tilted design that permits them to make up for an absence of similarity.
How Does Beveled Washer Work?
Beveled washers are developed to distribute the tons of a fastener. All bolts will apply a ton to the objects in which they are set up. When you drive a bolt into an item, as an example, the screw’s head will push versus the surface of the things. In time, this may lead to damages.
The things may break, warp, or otherwise suffer damage around the area of the fastener’s head. Beveled washers safeguard objects from damage by dispersing lots of fasteners. Beveled washers raise the surface area of the fastener’s tons, thus shielding items from damage. Some attaching applications may require using beveled washers. All beveled washers are angled. An angled layout is basically what differentiates them from many various other types of washers.
Architectural light beams may require beveled washers. If an architectural beam of light is tilted, a tilted washer needs to be made use of to protect it. Beveled washers are angled. They can be made use of to safeguard angled structured beams of lights. For applications including angled light beams, square-shaped bevel washers are utilized.
Beveled washers can come square or circular, one side comes on an oblique angle in order to be used with beams or channels that do not run parallel. They typically come in F436 material and are meant to be used with A325 and A490 structural bolts
Beveled Washer Sizes Chart
| Nominal Diameter | M12 | M14 | M16 | M20 | M22 | M24 | M27 | M30 | M36 |
|---|---|---|---|---|---|---|---|---|---|
| d1(min) | 14 | 16 | 18 | 22 | 24 | 26 | 30 | 33 | 39 |
| max | 14.4 | 16.4 | 18.4 | 22.5 | 24.5 | 26.5 | 30.5 | 33.6 | 39.6 |
| s(min) | 43 | 43 | 43 | 43 | 43 | 43 | 56 | 56 | 56 |
| max | 45 | 45 | 45 | 45 | 45 | 45 | 58 | 58 | 58 |
| t(min) | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| max | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 |
| n ①(min) | 10.5 | 12.2 | 14 | 17.5 | 19.2 | 21 | 23.6 | 26.2 | 31.5 |
