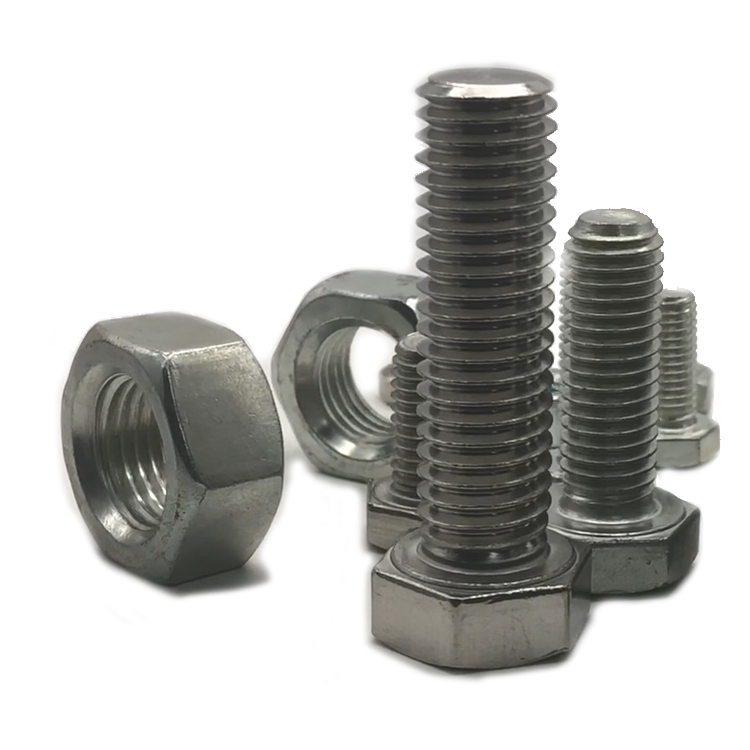

Hex Bolts Details
Bolts are indispensable in daily life and industrial manufacturing. Bolts are also known as industrial meters. It can be seen that the bolts are widely used. The application scope of bolts and nuts includes automotive, construction, electronic products, mechanical products, digital products, electrical equipment, electromechanical mechanical products. Bolts and nuts are also useful in ships, vehicles, water conservancy projects, and even chemical experiments. Anyway, bolts are used in many places. Precision bolts used on special digital products. Miniature bolts for DVDs, cameras, glasses, watches, electronics, etc .; general bolts for TVs, electrical products, musical instruments, furniture, etc .; for engineering, construction, and bridges, large bolts and nuts are used; transportation appliances, aircraft, trams, automobiles The equivalent is the combination of large and small bolts.
There are many types of bolts and hardware nuts. Most, if not all, bolt types have machine threads, A threaded bolt screws into nuts to hold or fasten materials together.

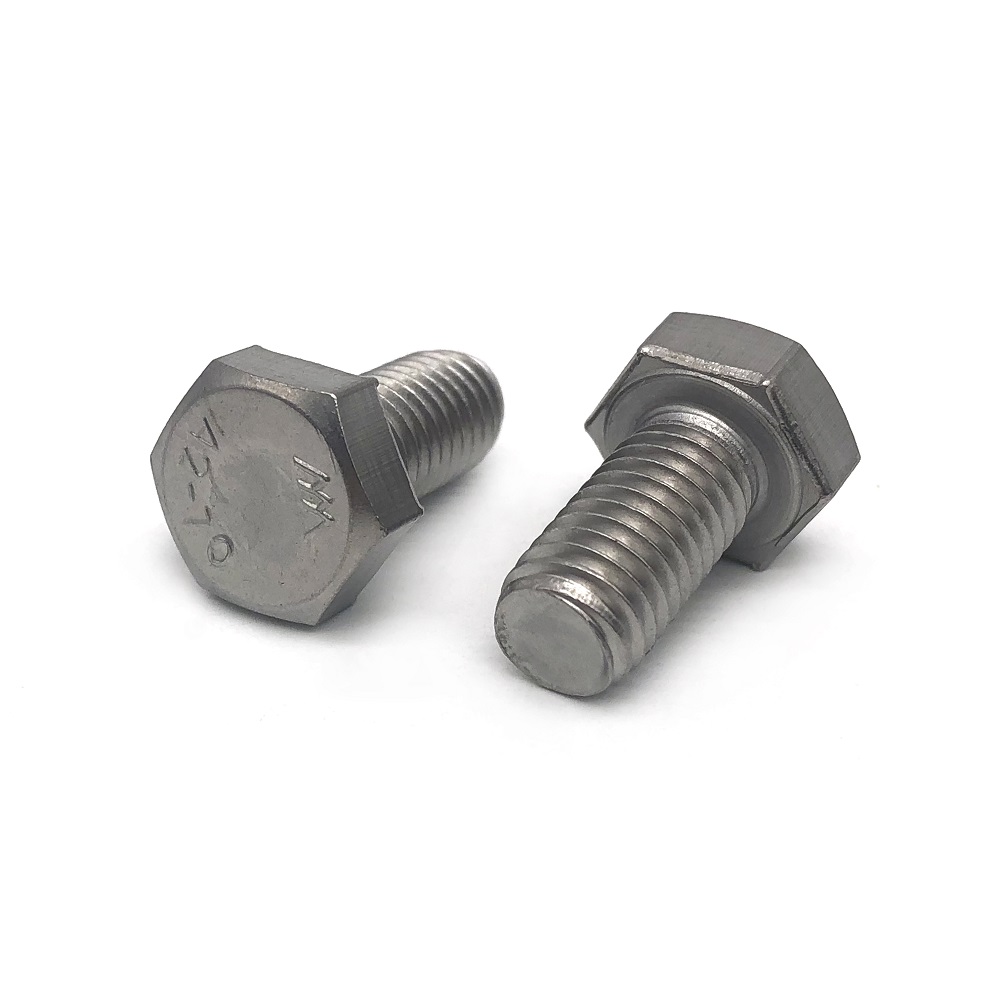

Hex Bolts(Six-sided Heads) are the industry standard for fasteners with forged heads, for specifications such as A307 Grade B, A325, and A490 that require a heavy hex pattern.
Hex Bolts also called Hex Head Bolts to have hexagonal heads and machine threads for use with a nut or in a tapped hole. as hex cap screws or machine bolts
Many bolts are held fixed in place during assembly, either by a tool or by a design of non-rotating bolt, and only the corresponding nut is turned
Hex Bolt Chart
Nominal thread(d) | Pitch(P) | K(max) | K(min) | S(max) | S(min) |
---|---|---|---|---|---|
M6 | 1 | 4.24 | 3.76 | 10 | 9.65 |
M7 | 1 | 5.04 | 4.56 | 11 | 10.57 |
M8 | 1.25 | 5.54 | 5.06 | 13 | 12.57 |
M10 | 1.5 | 6.69 | 6.11 | 17 | 16.57 |
M12 | 1.75 | 7.79 | 7.21 | 19 | 18.48 |
M14 | 2 | 9.09 | 8.51 | 22 | 21.16 |
M16 | 2 | 10.29 | 9.71 | 24 | 23.16 |
M18 | 2.5 | 11.85 | 11.15 | 27 | 26.15 |
M20 | 2.5 | 12.85 | 12.15 | 30 | 29.16 |
Custom Hex bolts are available, no matter what materials, stainless steel, carbon steel, titanium, brass, plastic, aluminum etc
Grade 4.6, 4.8, 5.6, 6.8, 8.8,9.8, 10.8,10.9, 12.9
Standard ISO, GB, ANSI, DIN, JIS, NON-STANDARD
Hex Bolts Application
Hex bolts can be used for many different applications that include fastening wood, steel, and other construction materials for projects such as docks, bridges, highway structures, and buildings. Hex bolts with forged heads are also commonly used as headed anchor bolts.
Types Of Hex Head Bolts
Hex bolts can be either fully threaded or partially threaded (featuring a clear shank along part of the body) and are suitable for use in a wide range of applications, typically machinery and construction. automotive, vehicles, and more. types include
- Fully Threaded Hex Bolts.
- Partial Threaded Hex Bolts.
- Metric Hex Bolts.
- Imperial Hex Bolts.
They are called partial thread bolts because of the part that has no threading. This non-thread area of a bolt, also known as the bolt shank or shoulder of the fastener, will vary in length depending on the bolt’s application. Also partially threaded shank to protect them against loosening. When driven into an object or surface, they’ll stop automatically after reaching the end of the threading. And like fully threaded screws, they can be used either with or without nuts and washers
Fully threaded bolts have threads that run the entire length of the bolt whereas partially threaded bolts have an unthreaded area just beneath the head and then have partial threading the rest of the bolt length. They are ideal for use in heavy-duty fastening applications and are best suited to installation in pre-threaded holes
How do you remove a hex bolt?
Use a hammer to tap against the hex-key wrench in extreme cases. Pour a few drops of household oil or spray a shot of aerosol lubricant on screw heads that do not come loose with the additional tools. Allow 20 minutes for the lubricant to work in between the threads before attempting removal.
