Standoff Screws

Custom Screws Manufacturer

Heatfastener

Standoff Screws

Supplier

Heatfastener is a standoff screws manufacturer and supplier with 23years of experience, we are a young and creative team with nearly 230 employees, Human resources is the most core value and most valuable wealth of Heatfastener company, there are many undergraduates from key universities and senior technicians who have worked in this industry for more than 10years, resources is also the power of sustainable development of Heatfastener

With ISO9001:2008,iso14001:2004, and especially IAFT16949:2009 certification for the automotive industry. Heatfastener offers fully customized custom bolts and screws according to your needs. We can bring your fastener design to reality, and everything according to your requirements.

standoffs screws

Standoff Screws Details

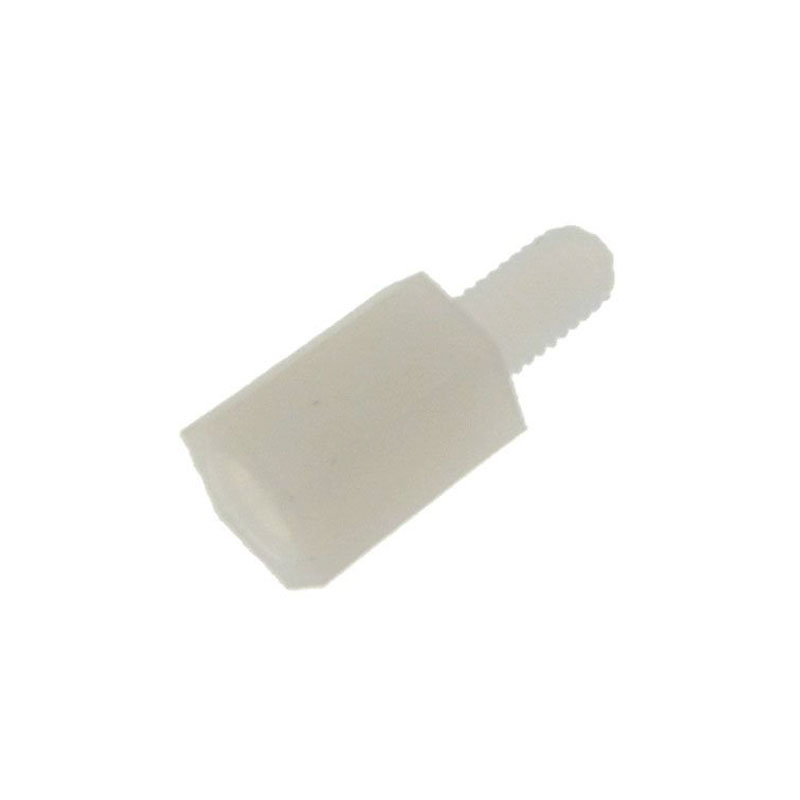

Standoff screws are double-ended threaded fasteners used to set a distance between two parts. Typical standoffs (from left to right): female/female, male/female, and male/male. A standoff is a threaded fastener used to hold two parts a set distance apart.

Does that utilize standoffs? A standoff appears like a made complex variation of a screw, as well as its type of is. It’s a separator that’s threaded. They are available in various sizes to ensure that you can elevate one product over an additional one. They include a wall screw, barrel, as well as cap, as well as they’re normally made from nylon(plastic), brass, copper, or lightweight aluminum. Their form can differ, yet they’re normally hex-shaped, so they can be tightened up by a wrench, or round. They likewise have various kinds that are gendered to make sure that they can fit together. They are made use of for a selection of factors yet are frequently seen in the electronic devices and also show sectors. Standoffs are typically lumped together with one more kind of attaching device: spacers. Although they are often made use of on the exact same item of digital devices, both are fairly various. A spacer is an unthreaded item of tubes. The tubes permit a whole screw to go through. Unlike a standoff, a spacer can not be tightened up, so they are typically a rounded form.

Standoffs come in a variety of diameters and lengths. We carry them in coarse and fine thread. Listed below are the diameters we carry for all of our custom screws, custom bolts, and other custom fasteners:

Materials:

  • Stainless steel – SS302, SS304, SS316, (good tenacity),Stainless steel A2 A4
  • Steel – C45(K1045), C46(K1046),C20
  • Brass – C36000 ( C26800), C37700 ( HPb59), C38500( HPb58),C27200CuZn37), C28000(CuZn40)
  • Bronze–C51000, C52100, C54400, etc
  • Aluminum – Al6061, Al6063 etc
  • Carbon steel – C1006,C1010,C1018,C1022,C1035K,C1045
  • Alloy steel – SCM435,C10B21,C10B339
  • Other material– Titanium, UNS C11000 Copper,silicon

Others:

  • Grade: Grade 4.8,Grade 6.8,Grade 8.8,Grade10.9,Grade12.9 etc
  • Standard:GB,DIN,ISO, ANSI/ASTM,BS,BSW,JIS, Metric, Inch
  • Finish:Plain, H.D.G, Black oxide, Chrome, Teflon,dacromet,Anodized,With nylok
  • Certificates: ISO9001:2015, ISO14001:2015,IATF16949, ROHS
  • Non standards:OEM is available,according to customer requirments

Head type&Drive Type

  • Head Type:Flat, Oval, Binding, Pan, Round, Truss, Button, PF,Cheese,Fillister, Pan Washer, Cylinder,Hexagon, Indented Hexagon,Washer
  • Drive Type:Phillips, Slotted, Phiilips/Slotted, 6 Lobe, Pin 6 Lobe, Pozidrive, Square, Triangle,Y type. Tri-wing, S-type, H type, Hexagon, 5 Point,8 point, Spline, Spanner, Clutch, Hex pn,torx pin

Application

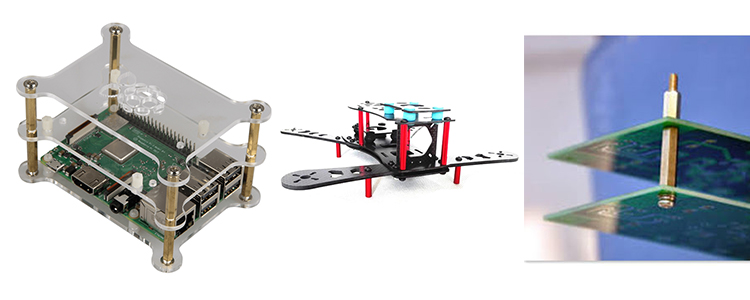

standoffs are used for sign mounting, they are just a simple and small piece of hardware that is used to attach the sign to the wall and secure it. Standoffs are used on acrylic signs and aluminum signs to give a high-end feel to the signage.

The other standoff screws most common use for standoffs is in electronics. When people assemble circuit boards, they use both spacers and standoffs as they are the standard for mounting and connecting circuit boards as well as gears, panels, and doors of electronics. Using standoffs allows for the pieces to be elevated above one another, reducing the chances of contact. Having these parts separated keeps them from short-circuiting.

Standoffs can come in three genders: female-female, male-female, and male-male. Female-female standoffs can be either partially or fully threaded on each end. Male-female standoffs are composed of female threads internally on one end and male threads on the other end. The threads for these are typically the same size

Advantage of our standoff screws

  • Uniform stree byth standard,screw teeth more sharp and not easy to slip
  • Full automatic process with advanced equipment, to ensure the processing density of copper, copper refining app earance Exqusite workman ship
  • Six corresflat,smooth surface,using high quality stainless steel processing conforn,to make precision

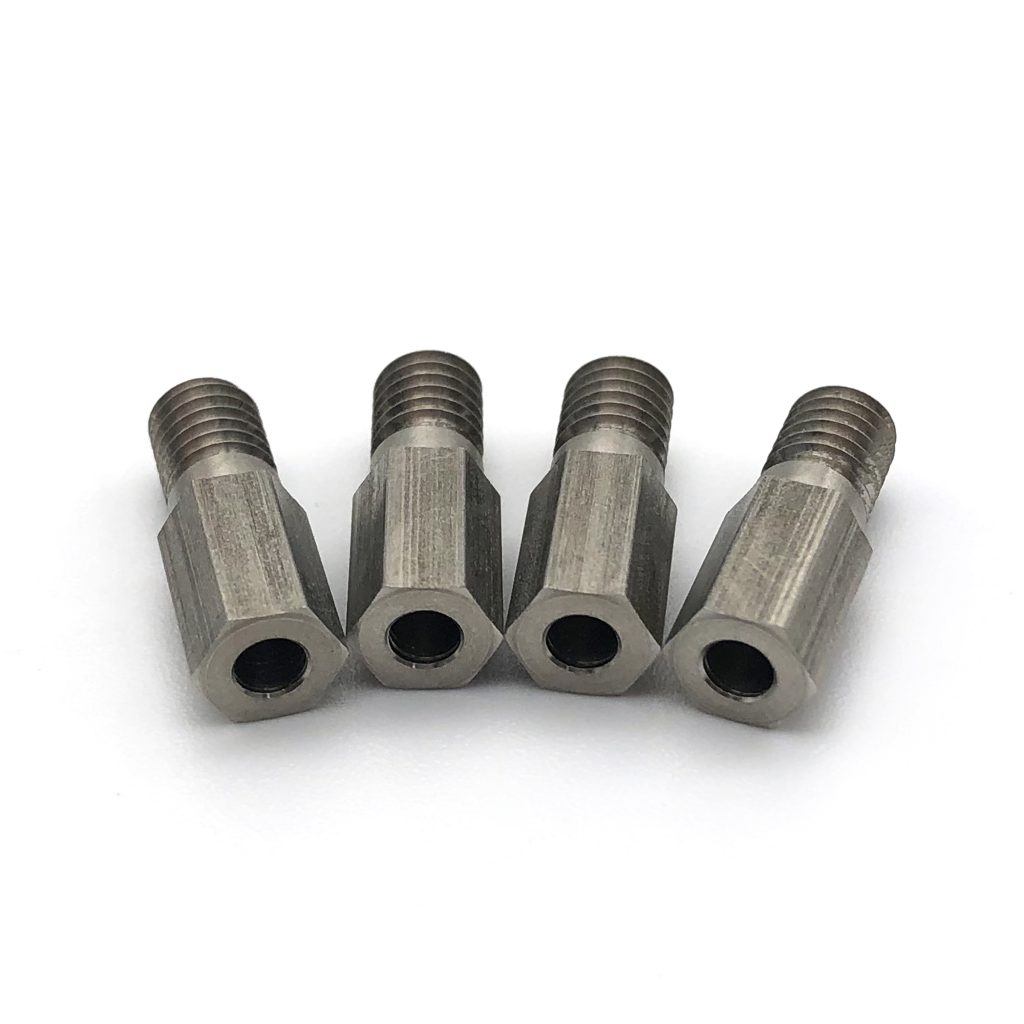

We can manufacture custom standoff screws as per the customer’s requirement. below is one of the sizes we made.

Noted:1.L<100(MM) 2. As this product does not currently have c corresponding national standard, and the company standard is not the same, the above specifications are for reference only.3. Custom standoff screws are available

Screw Thread(d) Screw Thread(d) M2.5M3M4M5M6M8
Ppitch0.450.50.70.811.25
DNominal Diameter/UN4#6#8#10#
PPUN40323232
Norminal Size455667881012
sMIN3.94.94.95.95.96.97.97.99.911.9
MAX4.15.15.16.16.17.18.18.110.112.1
L1min666677881012
Nominal size666677881012
L2min5.95.95.95.96.96.97.97.99.911.9
max6.16.16.16.17.17.18.18.110.112.1

Need Custom Standoff Screws for Your Industry?

As a 20-year industry experience manufacturer with a factory equipped with precision machines, we can provide, from consultation to production, a one-stop solution for you.

About Us

Shenzhen Heat Hardware Co., Ltd is a leading custom screw manufacturer in China founded in 2000 years. We are specializing in custom screws, security screws, Sems screws, Chicago Screws, Weld Screws, Long screws, Micro Screws, Thumb Screws, Set Screws, Custom bolts, carriage bolts, nuts, and other custom Fasteners. With more than 20years of industry experience. We have serviced over 20000customers including the aerospace industry, automotive industry, electronics, mechanical and electrical products, robots, the Medical industry, communications industry, Outdoor sports products, smart appliances, etc. we can provide one-stop fastener customized service for you no matter what kind of custom fastener you need.

Frequently Asked Questions

A standoff is a double-ended threaded fastener used to set a distance between two parts. … A male end of a standoff resembles a shoulder bolt, however, instead of a head, a standoff has another threaded fastener at the other end. Other important parameters are the length (distance between shoulders) and the thread size.

Standoffs are made use of in a variety of jobs to maintain 2 things spaced apart. They can be made from steel, plastic, or various other products as well as be available in a variety of various designs. Some standoffs are threaded for screws as well as others have glue support that will certainly adhere to the surface area they’re connected to. Standoffs can additionally be utilized as spacers in between things on racks or countertops so products do not run into each other when you relocate them about.

Standoffs are made from brass since it is a reasonably soft steel that can be pierced, touched, as well as transformed. Brass additionally has great thermal conductivity as well as electric resistivity. Ultimately, the product does not rust quickly making it an optimal option for this application.

Standoffs are a type of spacer. Spacers are used to separate two objects, such as circuit boards in an electronics project or panels on a wall. Standoffs can be made from metal, plastic, or rubber and come in various sizes.

Each 1″ standoff can hold 50lbs of weight, so a typical 4 corner application could hold 200lbs of weight (depending on the wall structure and anchors)
