Heatfastener is a professional engaged in the production of T nuts and T slot nuts and custom screws and 23 years of research and development of screw and bolt, nuts suppliers. We offer nuts in inches and metrics. We can also make your nut per your size and plating specifications. Our nut line has many different materials as well. From plastic, stainless steel, aluminum, exotic metals, various grades of steel, and much more, we can supply your nut with the material you need.

With ISO9001:2008,iso14001:2004, and especially IAFT16949:2009 certification for the automotive industry. Heatfastener offers fully customized custom bolts and screws according to your needs. We can bring your fastener design to reality, and everything according to your requirements.

T nuts

T Nuts Details

T-nut, T nut, or tee nut (also known as a blind nut, which can however also refer to as a rivet nut or an insert nut, and likewise drive-in nut is a type of nut used to fasten a wood, particle, or composite materials workpiece, leaving a flush surface.T nuts have T slot nuts and weld nuts, two types.


T-nuts have a long, thin body and a flange at one end, so they look like a T in profile. The prongs on the flanges sink into the wood to hold it more securely. The flanges of T-nuts often have hooks or serrations on the prongs that dig into a wooden workpiece as the bolt is tightened from the opposite side of the piece, providing better retention.
In 1969, the first four-prong T-nut with an eight-sided base was patented. Unlike standard round base T-nuts, eight-sided T-nuts can be fed efficiently and reliably via machine. The eight-sided T-nut base has become the standard configuration for T-nuts inserted by machine

We can also manufacture these items in special materials and custom made as below listed:

Materials:

  • Stainless steel – SS302, SS304, SS316, (good tenacity),Stainless steel A2 A4
  • Steel – C45(K1045), C46(K1046),C20
  • Brass – C36000 ( C26800), C37700 ( HPb59), C38500( HPb58),C27200CuZn37), C28000(CuZn40)
  • Bronze–C51000, C52100, C54400, etc
  • Aluminum – Al6061, Al6063 etc
  • Carbon steel – C1006,C1010,C1018,C1022,C1035K,C1045
  • Alloy steel – SCM435,C10B21,C10B339
  • Other material– Titanium, UNS C11000 Copper,silicon

Others:

  • Grade: Grade 4.8,Grade 6.8,Grade 8.8,Grade10.9,Grade12.9 etc
  • Standard:GB,DIN,ISO, ANSI/ASTM,BS,BSW,JIS, Metric, Inch
  • Finish:Plain, H.D.G, Black oxide, Chrome, Teflon,dacromet,Anodized,With nylok
  • Certificates: ISO9001:2015, ISO14001:2015,IATF16949, ROHS
  • Custom Made:OEM is available,according to customer requirments

Application

When you need to fasten wood, particle, or composite materials together and wish to maintain a flush surface, T-Nuts might be the fastener you need.

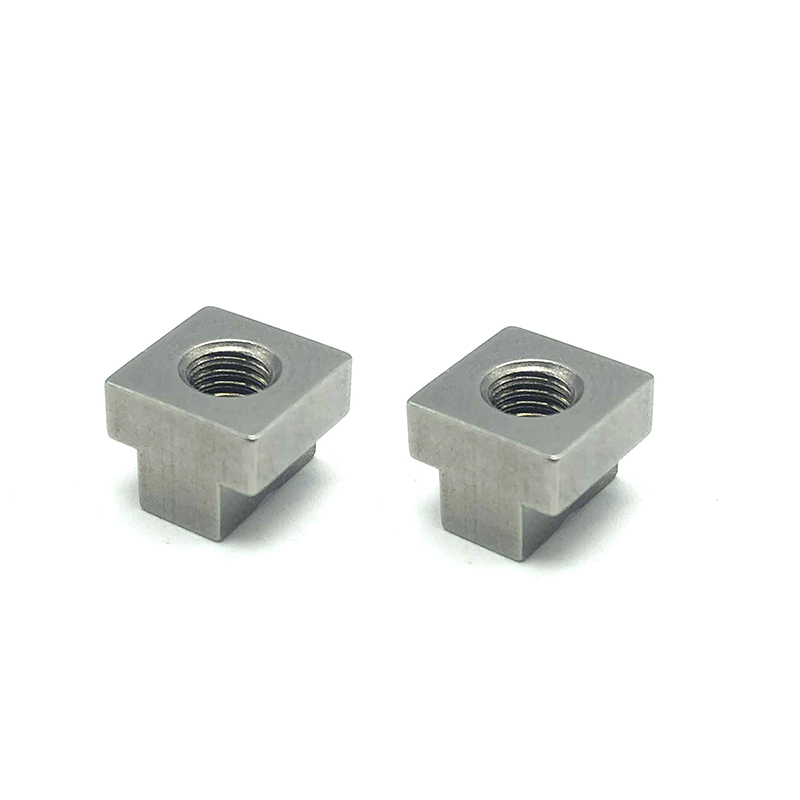

T slot nuts which are used in work holding in machine tools, fit in T section slots in the machine work table and are used in conjunction with studs and clamps to provide flexible means of holding workpieces in place

Weld nuts, which are similar in appearance to t-nuts. They lack the prongs which penetrate into the wood. Weld nuts are usually spot-welded into place on metal.

Also, our custom fastener, bolts, screws are widely used in the below industries

  • Electronics
  • Petrochemicals
  • Consumer products
  • Transportation
  • Agriculture
  • Heavy machinery
  • Construction
  • Automotive
  • Medical
  • Military
  • Aerospace
  • Oil and gas

Tee nuts for wood are available in two styles, 3-Prong and 4-Prong. The 3-Prong Tee Nuts are used for fastening harder materials, such as metal to wood, particleboard or plastic, as they minimize splitting of the mating surface. 4-Prong Tee Nuts are generally used for hard or softwoods.


As at-nut supplier, Heatfastener offers both bulk and small package sizes with thread sizes ranging from 6-32 up to 3/8-16.

Materials of T Nuts
Zinc-plated steel t nuts provide good corrosion resistance and is a good, economical choice for most applications.
Stainless steel t nuts provide superior corrosion resistance.

We also manufacture custom T nuts as per customer drawing, titanium, aluminum, brass, copper, You can rely to us

Heatfaster is a custom T slot nuts manufacturer and supplier, factory, we produce all kinds of Custom nuts from M2.5 to M48

Nominal Diameter(d)M4M5M6M8M10M12M14M16M18
PPitch0.70.511.251.51.75222.5
nNominal Size568101214161820
max4.75.77.79.711.713.715.717.719.7
min4.55.57.59.511.413.415.417.419.4
sNominal Size91013151822252832
max9.2910.2913.3515.3518.3522.4225.4228.4232.5
min8.719.7112.6514.6517.6521.5824.5827.5831.5
kNominal Size2.54667891012
max2.74.246.296.297.298.299.2910.2912.35
min2.33.765.715.716.717.718.719.7111.65
hNominal Size6.5810121416182024
max6.798.2910.2912.3514.3516.3518.3520.4224.42
min6.217.719.7111.6513.6515.6517.6519.5823.58
t SLOT NUTs dimension
Nominal Diameter(d)M20M22M24M27M30M36M42M48
PPitch2.52.5333.544.55
nNominal Size2224283236424854
max21.723.727.731.635.641.647.653.6
min21.423.427.431.335.341.347.353.3
sNominal Size3440435053647585
max34.540.543.550.553.664.675.685.7
min33.539.542.549.552.463.474.484.3
kNominal Size1416182023283236
max14.3516.3518.3520.4223.4228.4232.536.5
min13.6515.6517.6519.5822.5827.5831.535.5
hNominal Size2832364044526070
max28.4232.536.540.544.552.660.670.6
min27.5831.535.539.543.551.459.469.4

Need Custom Nuts for Your Industry?

As a 20-year industry experience manufacturer with a factory equipped with precision machines, we can provide, from consultation to production, a one-stop solution for you.

About Us

Shenzhen Heat Hardware Co., Ltd is a leading custom screw manufacturer in China founded in 2000 years. We are specializing in custom screws, security screws, Sems screws, Chicago Screws, Weld Screws, Long screws, Micro Screws, Thumb Screws, Set Screws, Custom bolts, carriage bolts, nuts, and other custom Fasteners. With more than 20years of industry experience. We have serviced over 20000customers including the aerospace industry, automotive industry, electronics, mechanical and electrical products, robots, the Medical industry, communications industry, Outdoor sports products, smart appliances, etc. we can provide one-stop fastener customized service for you no matter what kind of custom fastener you need.

Frequently Asked Questions

Use a hammer to get the t-nuts completely flush and seated. Make sure they are straight and flush with the surface of the plywood. There are 288 in one 4×8 sheet of plywood. Your arm will bet tired but stick with it and get them all seated correctly.

What is this? Since the only way the T-nut can come out of the wood is to be pulled through it, it is an incredibly strong fastener. T-Nuts installed into soft plywood have a pull out strength of 1378 pounds, while those installed in hardwood plywood have a pull out strength of 1850 pounds.

A T-slot nut is used with a threaded clamp to position and secure pieces being worked on in a workshop. The T-slot nut slides along a T-slot track, which is set in workbench or table for a router, drill press, or bandsaw

Tee nut size refers to its nominal thread diameter. Typically, sizes range from about #6 to 3/8″. Sizes less than 1/4″ appear as a number size (the larger the number the larger the size) while sizes that are 1/4″ and larger are specified in inches, usually fractional rather than decimal.
