Titanium 12 point Flange Bolts and Nuts
Heatfaster is a professional custom flange bolts and nuts manufacturer and supplier, we produce a variety of 12 Point flange Bolts and nuts (also known as 12-Point Flange Bolts and 12-Point Flange Screws.12-Point Flange Head Cap Screw, or ferry bolts.）We offer flange bolts in inches and metrics. We can also make your nut per your size and plating specifications.
Materials
- Stainless steel – SS302, SS304, SS316, (good tenacity)
- Steel – C45(K1045), C46(K1046),C20
- Brass – C36000 ( C26800), C37700 ( HPb59), C38500( HPb58),C27200CuZn37), C28000(CuZn40)
- Bronze–C51000, C52100, C54400, etc
- Aluminum – Al6061, Al6063 etc
- Carbon steel – C1006,C1010,C1018,C1022,C1035K,C1045
- Alloy steel – SCM435,C10B21,C10B339
- Other materials– Titanium, UNS C11000 Copper
Specification
- Grade: Grade 4.8,Grade 6.8,Grade 8.8,Grade10.9,Grade12.9 etc
- Standard:GB,DIN,ISO, ANSI/ASTM,BS,BSW,JIS etc
- Finish: Plain, H.D.G, Black oxide, Chrome, Teflon,dacromet etc
- Certificates: ISO9001:2015, ISO14001:2015,IATF16949
- Non-standards: OEM is available, according to customer requirements
Features
- STANDARD PRODUCTION: Fine Workmanship, strictly controlled within the tolerance range
- HIGH PRECISION: Good abrasion resistance and corrosion resistance
- OEM&ODM: non-standard parts development and production expert
- High quality: High-quality material for long service time

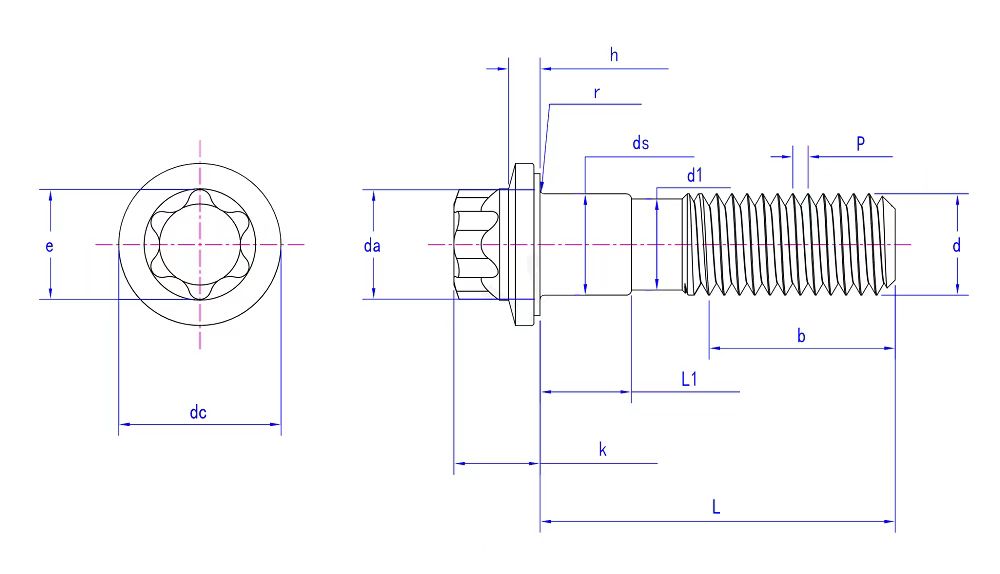

Dimensions& Charts Size
| Mon | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 |
|---|---|---|---|---|---|---|---|---|---|
| P | 0.8 | 1 | 1|1.25 | 1|1.25|1.5 | 1.25|1.5|1.75 | 1.5|2 | 1.5|2 | 1.5|2|2.5 | 1.5|2|2.5 |
| da max | 5.7 | 6.8 | 9.2 | 11.2 | 13.7 | 15.7 | 17.7 | 20.2 | 22.4 |
| dc max | 11.8 | 14.2 | 17.9 | 21.8 | 26 | 29.9 | 34.5 | 38.6 | 42.8 |
| d1 | 4.48 | 5.35 | 7.19 | 9.03 | 10.86 | 12.70 | 14.70 | 16.38 | 18.38 |
| ds max | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
| ds min | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | 17.73 | 19.67 |
| e | 7.3 | 9.2 | 10.95 | 12.65 | 16.4 | 18.15 | 21.85 | 25.4 | 28.9 |
| k max | 6.5 | 7.5 | 10 | 12 | 14 | 16 | 19 | 21.5 | 24 |
| k min | 6.25 | 7.25 | 9.75 | 11.75 | 13.75 | 15.75 | 18.75 | 21.25 | 23.75 |
| r min | 0.2 | 0.25 | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 |
| L1 min | 7.5 | 9 | 12 | 15 | 18 | 21 | 24 | 27 | 30 |
| h min | 1.45 | 1.75 | 2.65 | 3.6 | 4.1 | 5.1 | 5.5 | 6 | 6.5 |
| h max | 1.7 | 2 | 2.9 | 3.9 | 4.4 | 5.4 | 5.8 | 6.4 | 6.9 |
The Benefits of 12 point flange bolts
- 12-point flange bolts are an alternative head design for hex socket cap screws. The 12-Point design permits this style bolt to be tightened down with a 12-Point socket wrench, which permits higher torque to be applied as compared to a standard internal hex drive socket head cap screw. 12 Point Flange Bolt to be a replacement for any application currently using a socket head cap screw.
- 12-Point head type is used in tight spaces. The 12-Points have 30° between flats (as opposed to Hex heads which have 60°). This enables increased wrench flexibility (or placement) when manipulating the fastener.
- The higher strength and larger bearing area under the head of this design provide additional benefits for assemblies over standard hex-head cap screws
- More aesthetically pleasing than cap hex or socket head cap screws.
Frequently Asked Questions
Why Choice us
1. A full set of advanced equipment, assuring the product quality
-Automatic screw head and thread rolling machine
-Optical automatic screening machine
