Stainless steel J Bolts
Stainless steel J Bolts
Features: custom bolts, Hook Bolts, stainless steel bolts, J Bolt, construction bolts
Materials: Stainless steel; Finish coating: Passivated
Heatfastener is a professional J bolts manufacturer and supplier, not only screws but also bolts and other fasteners. Material can be stainless steel, carbon steel, titanium, or aluminum. etc. Metric and Inches are available. Non-standard sizes, materials, and finishes are available to order as specials, including small volume manufacture.

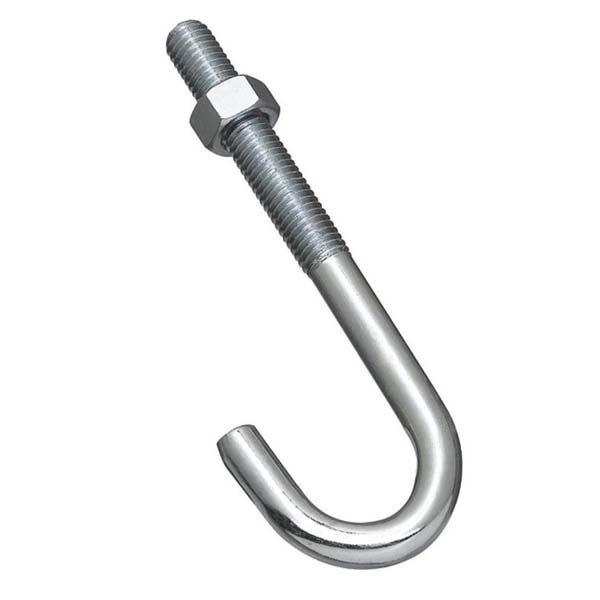

J-bolts are J-shaped fasteners, threaded on the flat side. They are often used in structural applications like securing walls to concrete foundations. The bent end hooks around the rebar for support and may be cast in concrete for use as an anchor bolt. They are a very common and durable fastener used by construction workers when erecting a new building. Homeowners also often use these fasteners when building garages, foundations or when attaching walls to concrete.
construction bolts are used to create joints between structural elements or to install them into a surface or material. In some cases, bolts are meant to be a permanent part of a structure, meaning that once they are installed they cannot be shifted and require no further maintenance or replacement.
Non-standard sizes, materials, and finishes are available to order as specials, including small volume manufacture, modifications, and custom parts made to drawings.

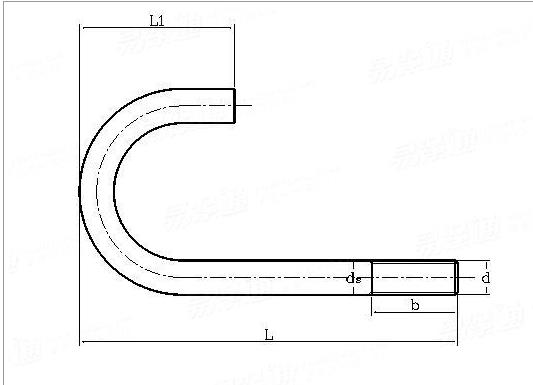

J bolts Dimensions Sizes
Dia(d) | ds(max) | ds(min) | b(max) | b(min) | L1 |
---|---|---|---|---|---|
M10 | 10.4 | 9.6 | 31.3 | 25 | 45 |
M12 | 12.4 | 11.6 | 40 | 32 | 56 |
M16 | 16.5 | 15.5 | 48 | 40 | 71 |
M20 | 20.5 | 19.5 | 58 | 50 | 90 |
M24 | 24.5 | 23.5 | 73 | 63 | 112 |
M30 | 30.6 | 29.4 | 90 | 80 | 140 |
M36 | 36.7 | 35.3 | 100 | 90 | 160 |
M42 | 42.8 | 41.2 | 121 | 112 | 200 |
M48 | 48.9 | 47.1 | 137.5 | 125 | 224 |
Need Custom Bolts for Your Industry?
As a 20-year industry experience manufacturer with a factory equipped with precision machines, we can provide, from consultation to production, a one-stop solution for you.
