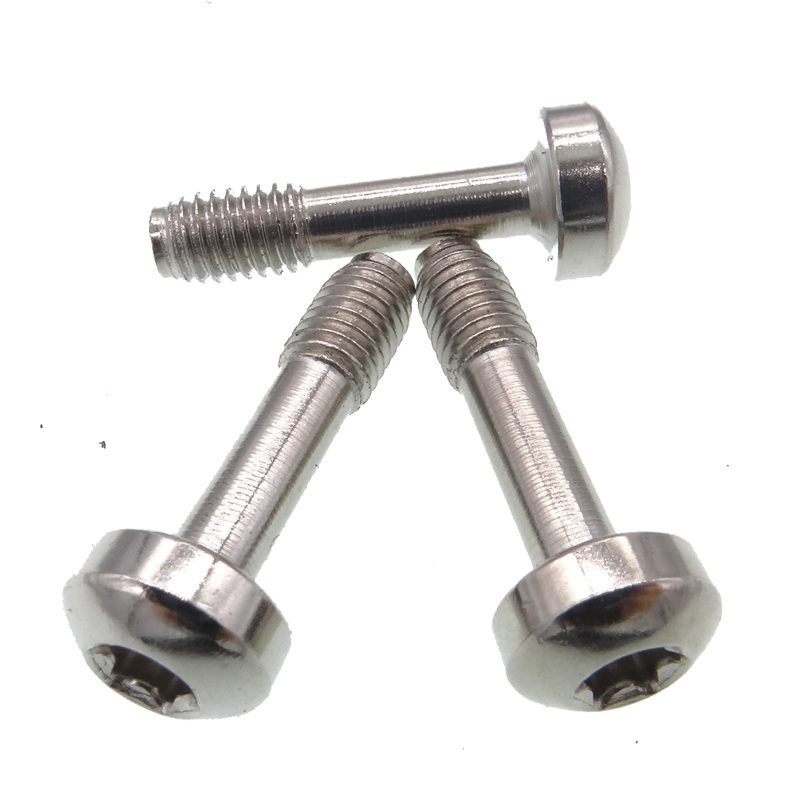

TX Button Reduced Thread Security Captive Screws

Offered TX Button Reduced Thread Security Captive Screws from Heatfastener as conventional in A2 as well as A4 Stainless-steel,304,316stainless steel. with captive screw dimensions from M3 to M10 as well as sizes varying from 12mm to 100mm.

Developed with a reduced thread, an unthreaded part below the head, which quits the screws from being completely eliminated from their real estate. They can be made use of along with captive Washers to develop a self-retaining bolt.

The hexalobular drive, additionally called protection TX, offers the screw tamper-proof buildings. Tamper-proof ways that they have actually been created to stop or dramatically prevent the opportunity of disturbance with the component– which with the unthreaded part makes it extremely not likely that the screw will certainly be hindered.

The work of a tamper-proof drive on a safety and security captive screw is utilized to make certain that the installer is the only individual able to carry out upkeep on the bolt.

They are usually discovered in commercial equipment as well as army applications. Security Pin TX Switch captive Screws are usually made use of for safety and security factors, as well as are needed by EU regulation on a variety of items of security devices. custom dimensions and also products are readily available to order, consisting of personalized components made to illustrations. Inches and metrics are available

DIN 34805-1 – 2018 Torx Button head screws

For Nominal Thread Diameter		4#	4#	6#	6#	6#	8#	8#	8#	10#	10#
P		/	/	/	/	/	/	/	/	/	/
PP		40	40	32	32	32	32	32	32	32	32
c	max	0.06	0.06	0.06	0.06	0.06	0.06	0.06	0.06	0.06	0.06
dc	max	0.264	0.264	0.28	0.28	0.28	0.311	0.311	0.311	0.343	0.343
dk	Nominal Size	0.344	0.344	0.375	0.375	0.375	0.406	0.406	0.406	0.437	0.437
	max	0.354	0.354	0.385	0.385	0.385	0.416	0.416	0.416	0.447	0.447
	min	0.334	0.334	0.365	0.365	0.365	0.396	0.396	0.396	0.427	0.427
H	Nominal Size	0.25	0.375	0.25	0.375	0.5	0.312	0.437	0.562	0.312	0.437
	max	0.266	0.391	0.266	0.391	0.516	0.328	0.453	0.578	0.328	0.453
	min	0.234	0.359	0.234	0.359	0.484	0.296	0.421	0.546	0.296	0.421
s	Nominal Size	0	0.125	0	0.125	0.25	0	0.125	0.25	0	0.125
	max	0.025	0.15	0.025	0.15	0.275	0.025	0.15	0.275	0.025	0.15
	min	-0.025	0.1	-0.025	0.1	0.225	-0.025	0.1	0.225	-0.025	0.1
L1	max	0.37	0.37	0.38	0.38	0.38	0.48	0.48	0.48	0.49	0.49
L2	Nominal Size	0.54	0.54	0.54	0.54	0.54	0.705	0.705	0.705	0.705	0.705
Sheet Thickness	min	0.06	0.06	0.06	0.06	0.06	0.06	0.06	0.06	0.06	0.06
Recommend Hole Size	min=nominal size	0.265	0.265	0.281	0.281	0.281	0.312	0.312	0.312	0.344	0.344
	max	0.268	0.268	0.284	0.284	0.284	0.315	0.315	0.315	0.347	0.347
