Torx 6 Lobe Pan Security Machine Screw

Torx 6 Lobe Pan Security Machine Screw

Categories: Security Screws, Security Machine Screws, Reusable 2 Way Security Fasteners, Tamper Proof Screws, A4 A2 Stainless Security Fasteners

Tags: Torx, TX, Security Star Screws, Torx Bolts

Brand: torx – 6 Lobe TX

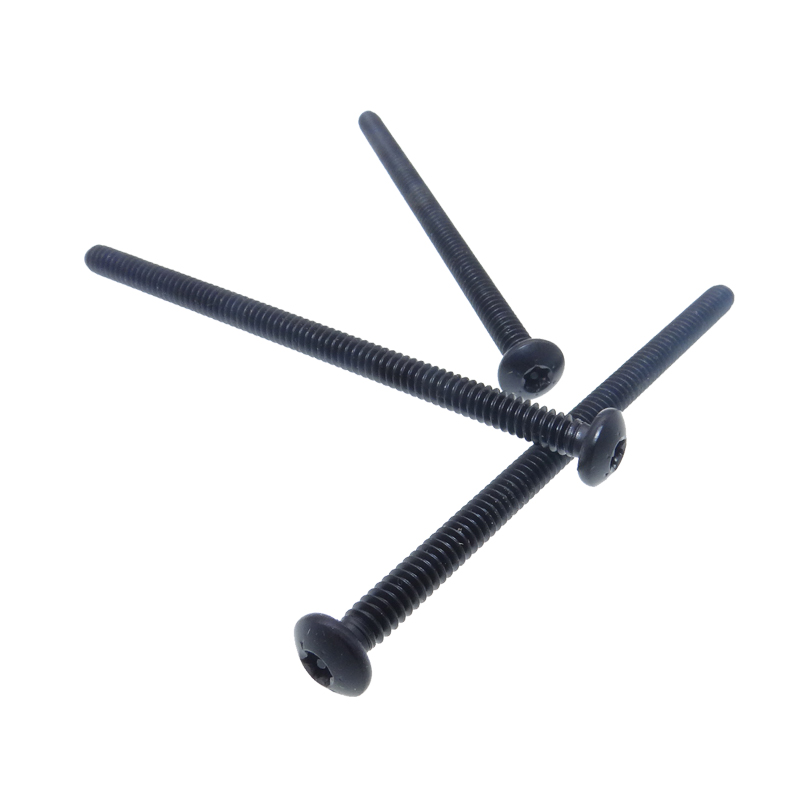

6-Lobe Torx Pan Head Security Machine Screws supply a tool degree of protection as well as meddle resistance at a reasonably inexpensive. They are likewise described as star Torx Drive screws, Tamper Torx ®, Torx ®, and also Resistorx ®.

It holds a variety of benefits, consisting of minimized slippage contrasted to Philips and also 2-Hole Drives– which minimizes the danger of damages to drive suggestion, screw head or application, which subsequently makes it affordable to set up and also eliminate.

The pan head holds a 6-point star-shaped screw head, which stands up to conventional Torx little bits and also indicates that a unique insert little bit or crucial wrench is needed to put and also remove it.

This economic, safe, and secure option has the ability to be made use of in greater torque applications, indicating it can be tightened up to extremely high degrees.

Non-standard dimensions and also products are readily available to get as specials, consisting of custom-made components made to draw.

Made from both A2 and also A4 Stainless-steel, with Metric and also Imperial dimensions offered from Heatfastener
This 2-way recyclable taking care is a perfect safety bolt for applications where upkeep is needed.
It can be made use of together with Pin TX Barrel Nuts, Safety And Security Wave Nuts, Shear Nuts, Kinmar Reusable Nuts, Kinmar Permanent Nuts, 4-Hole Nuts, or for included protection.

DIN7985 Torx Pan Head Machine Screw Screws Dimensions

SizesM1.6M2M2.5M3M4M5M6M8M10
Thread Pitch0.350.40.450.50.70.811.251.5
dkmin2.93.74.75.77.649.6411.3715.5719.78
dkmax3.2456810121620
kmin1.181.481.882.282.953.654.455.857.32
kmax1.411.722.122.523.253.954.756.157.68
Driver T4T6T8T10T20T25T30T40T50
